DAYCO part description

Product Description

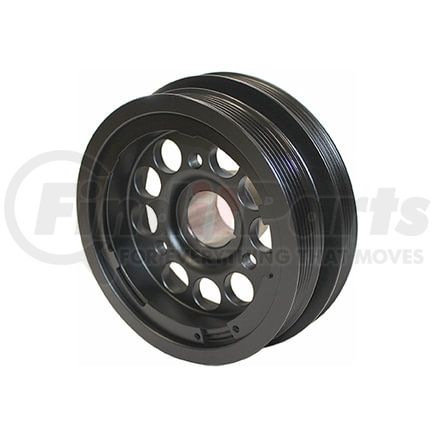

RACE PERFORMANCE BALANCER, POWERBOND

Product Attributes

Overall Outside Diameter 7.225 in
Overall Outside Diameter 183.50 mm
Crank Bore 1.481 in
Crank Bore 37.60 mm
Overall Width 2.817 in
Overall Width 71.55 mm
Nose Outside Diameter 2.128 in
Nose Outside Diameter 54.05 mm
Ring Width 2.421 in
Ring Width 61.49 mm
Bolt Hole Quantity 3
Crank Trigger/Exciter Plate No
Woodruff Key Included No
Hardware Included No
Counterweight Balance Neutral, no counterweight
Timing Marks Yes
Installation Instructions Included Yes
Number of Integrated Pulleys 2
Pulley 1 Type Serpentine
Pulley 1 Outside Diameter 7.067 in
Pulley 1 Outside Diameter 179.500 mm
Pulley 1 Number Of Grooves 4 mm
Pulley 2 Type Serpentine
Pulley 2 Outside Diameter 6.520 in
Pulley 2 Outside Diameter 165.600 mm
Pulley 2 Number Of Grooves 6 mm
Outer Ring Material Steel

Additional Information

Country of Origin (Primary) AU
Harmonized Tariff Code (Schedule B) 8483509080
UPC 09317010511176

Part Interchanges

Fits Vehicles

  • Chevrolet SS (2014-2017)
  • Chevrolet Caprice (2011-2017)
  • Pontiac G8 (2008-2009)
  • Cadillac CTS (2004-2007)
  • Chevrolet Corvette (1997-2013)
