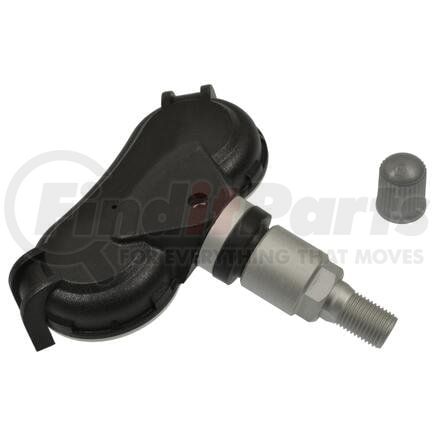

Standard Ignition TPM103A - Tire Pressure Monitoring System OE Design Sensor
- Part Number
- TPM103A
- Manufacturer
- STANDARD IGNITION
- Description
-
Tire Pressure Monitoring System OE Design Sensor
details
$4299
MSRP: $100.20
Save: $57.21
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Tire Pressure Monitoring System OE Design Sensor
Features & Benefits
- Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
- Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
- Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
- Validated at independent lab during 168-hour on-vehicle live test
- Military-grade lithium battery ensures maximum battery life and sensor performance
- Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
- Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
- External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
- Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
- Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another
Product Attributes
| Battery -powered | Yes |
| Connector Type | Bolt On |
| Core Material | Nickel Coated Core |
| Frequency | 315 MHZ |
| Inflation Valve Type | Metal |
| Mounting Hardware Included | Yes |
| Mounting Location | Wheel |
| Mounting Method | Clamp In |
| O.e.m. Replacement | Yes |
| Real Time Pressure Signal | Yes |
| Sensor Nut Torque (in/lbs) | 35 |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 9026204000 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00727943048042 |
Part Interchanges
- Echlin 92-1067C
- Siemens SE55905
- BWD TPM103A
- Duralast SU10983
- Toyota 4260708010
- Toyota 426070C030
- Toyota 426070C050
- Toyota 426070C070
- Dill Air Control 1206
- Dill Air Control 1206A
- Dill Air Control 1214
- Airtex 5S9521
- Dorman 974-032
- Airaware 20720
- Airaware 28670
- BWD Intermotor TPM103A
- CARQUEST Premium By WELLS 72-2715
- NAPA Solutions 974-032
- NAPA Solutions 974032
- Orange Electronic TO0C050
- 42753TY2A51
- 529333X200DS
- 529333X200
- SE55905
Fits Vehicles
- Hyundai Elantra Coupe (2013)
- Acura RLX (2014-2015)
- Kia Rio (2012-2017)
- Hyundai Elantra (2011-2013)
- Acura ZDX (2010-2013)
- Acura TL (2009-2014)
- Toyota Sequoia (2008-2017)
- Toyota Sienna (2007-2020)
- Toyota Tundra (2006-2017)
