RAYBESTOS 780960R Part Description
Manufacturer
Product Description

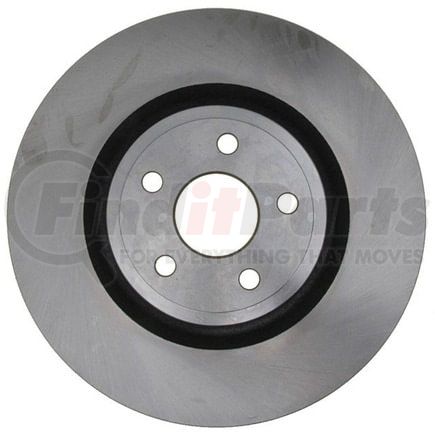

Raybestos R-Line Brake Rotor
Application Summary
2020-2012 Jeep Grand Cherokee Front, 2020-2018 Dodge Durango Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780960R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.535 IN |
| Inside Diameter | 242.2 MM |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.673 IN |
| Mounting Bolt Hole Diameter | 17.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.339 IN |
| Nominal Thickness | 34 MM |
| Outside Diameter | 14.961 IN |
| Outside Diameter | 380 MM |
| Overall Height | 2.15 IN |
| Overall Height | 54.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213014563 |
RAYBESTOS 780960R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH421771P |
| AUTOZONE | 72213, 72213DG, 72213DL |
| BENDIX | PRT6172 |
| BRAKEBEST | 780960, 780960FZN, 780960R, 780960RGS |
| Brembo | 09.N246.21 |
| CENTRIC | 120.58010, 120.58010CRY, 120.58010S, 121.58010, 126.58010SR, 126.58010, 126.58010CSL, 126.58010CSR, 126.58010SL, 127.58010L, 127.58010R, 128.58010L, 128.58010R, 226.58010, 320.58010F |
| CHRYSLER | 05181513AB, 05181513AD, 5181513AA, 5181513AB, 5181513AC, 5181513AD |
| Centric Parts | 120.58010, 120.58010CRY, 120.58010S, 121.58010, 126.58010, 126.58010CSL, 126.58010CSR, 126.58010SL, 126.58010SR, 127.58010L, 127.58010R, 128.58010L, 128.58010R, 226.58010, 320.58010F |
| DURA CORP | BR53066 |
| Dura Corp | BR901578 |
| DuraGo | BR901578 |
| MAGMA PRODUCTS | PMR145200 |
| MONROE BRAKES | BD180434 |
| NEWTEK AUTOMOTIVE | 53066 |
| Newtek Automotive USA | 53066 |
| PROMAX | 14-53066 |
| Qualis | 43181, 63203 |
| UAP | R58010 |
| WAGNER BRAKE | BD180434 |
| WORLDPAC | 1407-421771, 1427-524002 |
| WORLDPARTS | WS1-153066 |
| Wagner Brake | BD180500, BD180682E |
| Winhere | 6621372SL |
RAYBESTOS 780960R Fits Vehicles
- Dodge Durango (2017-2020)
- Jeep Grand Cherokee (2012-2020)
