DELPHI FG0955 Part Description
Manufacturer
Product Description

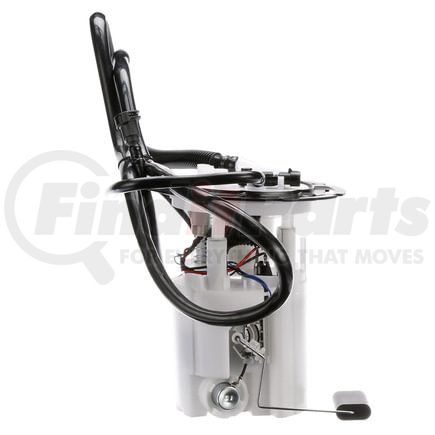

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0955 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 50 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 58 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Lock Ring Included | Yes |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 249 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 26 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 50 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604212097 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0955 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU1627, M10153, MU1300 |
| AUTOBEST | F2503A, F2766A |
| Airtex | E3592M, E3592MN, E3755M |
| AutoZone | FFG0955 |
| Bosch | 67575 |
| CARTER FUEL PUMPS | P76618M |
| Carter | P76618M |
| DENSO | 953-3080 |
| DENSO Auto Parts | 953-3054, 953-3080 |
| GMB | 5302945 |
| General Motors | 19169179, 19418266, 19167664 |
| N/A | 9533054, USEP3755M, F2766A, D0283M, 4010788 |
| Precision Fuel | A43033 |
| SPECTRA PREMIUM | SP6602M, SP6610M |
| Spectra Premium | SP6110M |
| Walbro | TU463 |
DELPHI FG0955 Fits Vehicles
- Chevrolet Malibu (2007-2008)
