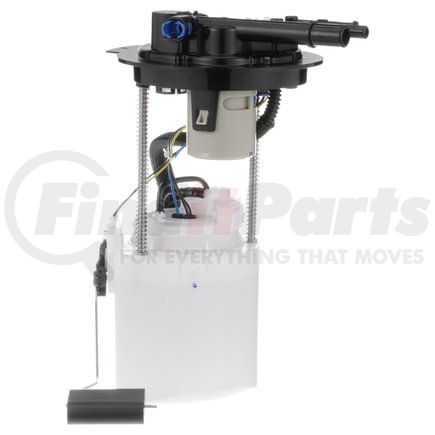

(888) 312-8812 Login SignupDELPHI FG0505 Fuel Pump Module Assembly
MSRP: $645.46
$38399
Save $261.47
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI FG0505 Part Description
DELPHI FG0505 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | Yes |
| System Pressure | 58 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 22 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604188538 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0505 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 19152995, 19152994, 19121842, 19121844, 19122340, 19149706, 19331943, 19331963, 88965402, 88965427 |
| N/A | 28077250, MU1561, USEP3792M, F2703A, P76634M, P77359M |
| ACDelco | MU1521, M10074 |
| Magneti Marelli | 1AMFP00147 |
| Carter | P76238M |
| Airtex | E3679M, E3792M, E3796M |
| Spectra Premium | SP6505M, SP6379M |
| Bosch | 67497 |
| AutoZone | CFG0505 |
| Precision Fuel | A30212 |
DELPHI FG0505 Fits Vehicles
- Buick Allure (2007-2008)
- Pontiac Grand Prix (2007-2008)
- Chevrolet Monte Carlo (2007)
- Chevrolet Impala (2007-2008)
- Buick LaCrosse (2007-2008)
