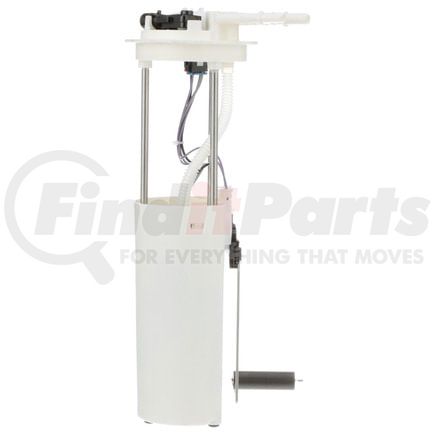

(888) 312-8812 Login SignupDELPHI FG0108 Fuel Pump Module Assembly
$32099
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Feb 4
DELPHI FG0108 Part Description
DELPHI FG0108 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 62 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Vapor Pressure Sensor | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 24 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 62 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604060452 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0108 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU174, MU1744 |
| AUTOBEST | F2522A |
| Airtex | E3511M |
| AutoZone | EFG0108 |
| Bosch | 67310 |
| CARTER FUEL PUMPS | P74914M |
| Carter | P74914M |
| DENSO | 953-5061 |
| DENSO Auto Parts | 953-5061 |
| EVO Driveline | AFS0393S, RE0393S |
| GMB | 530-2910 |
| General Motors | 19177223, 25317746, 19331244 |
| Master Parts Division | E3511M |
| N/A | 9535061, USEP3511M, C0178M |
| Precision Fuel | A27080 |
| Spectra Premium | SP3511M |
DELPHI FG0108 Fits Vehicles
- GMC Savana 3500 (1998-2000)
- Chevrolet Express 3500 (1998-2000)
