(888) 312-8812 Login SignupDELPHI ES10220 Oxygen Sensor
$5099
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Feb 26
DELPHI ES10220 Part Description
Manufacturer
Product Description

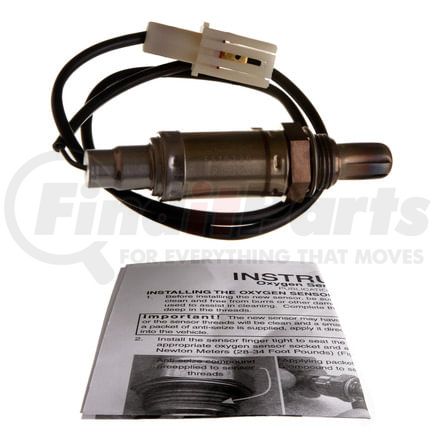

Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES10220 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Wiring Harness Length | 25.8 IN |
| Wiring Harness Length | 655.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 1 |
| Grade Type | Standard Replacement |
| Connector Shape | Square |
| Terminal Quantity | 1 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 27.0 IN |
| Overall Length | 685.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9027102000 |
| UPC | 00689604086865 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES10220 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131169, 2131175, 2131180, 21315, AFS20 |
| Airtex | 5S3612, 5S3661 |
| BorgWarner | OS112, OS700 |
| Bosch | 0258002054, 12054 |
| DENSO | 234-1012, 234-1019 |
| DENSO Auto Parts | 234-1012, 234-1019 |
| Ford | E8GY 9F472-A, E8GY 9F472-F, E92Z 9F472-A, F0JY 9F472-A, F0JY 9F472-B, FEH1-18-8619U, FOJY 9F472-B |
| Kem | 138-143, 138-193, 138-198 |
| Mazda | 8601-18-861, AM15-18-861, B601-18-861, B6B1-18-861, B6B1-18-8619U, B6B3-18-861, B6B3-18-861A, BEH1-18-861, E663-18-861, F201-18-861, F201-18-861A, F201-18-861A9U, FE05-18-861, FEH1-18-861, FEH1-18-8619U |
| Motorcraft | DY-583 |
| N/A | 25021012, 860118861, AM1518861, B60118861, B6B118861, B6B1188619U, B6B318861, B6B318861A, BEH118861, E66318861, F20118861, F20118861A, F20118861A9U, FE0518861, FEH118861, 138143, 138193, 138198, E8GY9F472A, E8GY9F472F, E92Z9F472A, F0JY9F472A, F0JY9F472B, FEH1188619U, FOJY9F472B, DY583, 2341012, 2341019 |
| NTK | 22084, 24006 |
| Oextra | REA1095 |
| SPECTRA PREMIUM | OS5380 |
| Standard Motor Products | SG32, SG649 |
| Walker Products | 250-21012 |
| Wells | SU214, SU234, SU4612, SU4624, SU4627 |
DELPHI ES10220 Fits Vehicles
- Mazda B2600 (1987)
- Mazda 626 (1986-1989)
- Mazda GLC (1985)
- Mazda 323 (1986-1989)
- Mazda MX-6 (1988-1989)
- Mercury Tracer (1988-1989)
- Mercury Capri (1991-1994)
- Ford Probe (1989)
