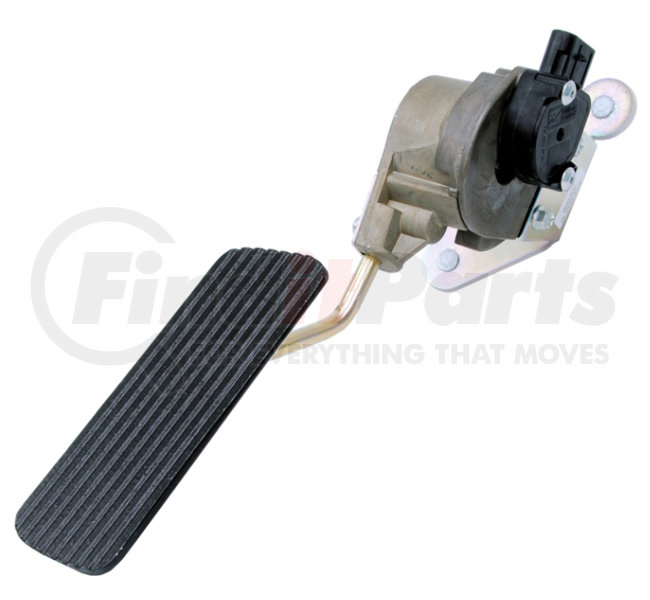

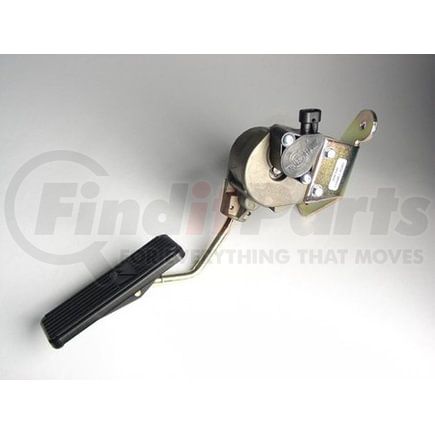

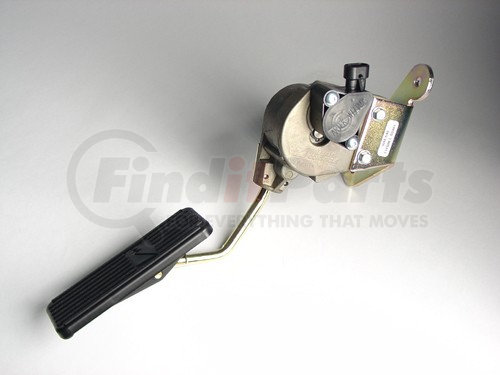

Name: Williams Controls 403648 WM-540 131506 Electronic Suspended Pedal Assembly (403648)
SKU: 403648
Price: 262.69 USD
Availability: OutOfStock

WILLIAMS CONTROLS part description

The WM540 can be fitted with a variety of sensors to provide and analog or pulse width modulated signal proportional to the pedal position. On some model, an idle validation switch signals the on/ off idle condition. For use with DDEC Engines.

The WM-540 electronic suspended pedal is firewall mounted and designed to provide an electrical signal to an engine control module in response to the operator's demand for engine power. The WM-540 is equipped with a Hall-effect, non-contact sensor that can be programmed for analog output and/or integrated switches. The electronics are IP67 sealed and highly EMI resistant (SAE J1113). In addition, the unit can be customized with contact or PWM output sensors.

The robust design includes a corrosion-resistant, cast-aluminum housing and a coated-steel mounting bracket. Brackets can be modified to meet different mounting requirements. Standard bent-steel lever rods can accommodate a variety of pedal placements, and a customized 3/16” steel plate lever is available for high static-load requirements.

WILLIAMS CONTROLS 403648 Cross Reference

We have 3 alternatives for the 403648 by WILLIAMS CONTROLS:

A division of Curtiss-Wright Corporation, Williams Controls® specializes in aftermarket electronic, hydraulic, and pneumatic control solutions for commercial vehicles. Originally founded in 1937 to manufacture brake components for logging trucks, it has grown into one of the leading producers of control systems for the heavy duty vehicle market. It has also pioneered key products and technologies such as the pneumatic controls and electronic throttle controls for trucks and buses. Today, Williams Controls offers a comprehensive lineup of hand, joystick, throttle controls, adjustable pedal systems, handrest systems, and sensors for all commercial vehicles. All products are manufactured under a strict Quality and Environmental System and comply with ISO standards.
