GATES part description
Product Description

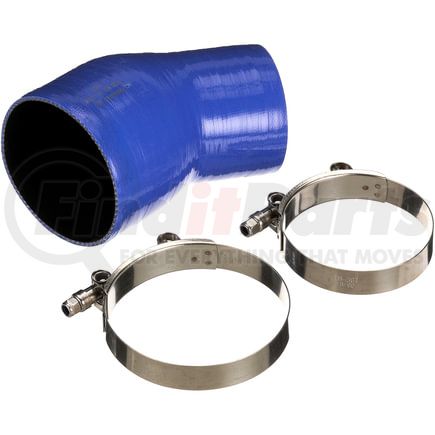

Molded Turbocharger Hose Kit
Application Summary
2002-1994 Dodge, Ram Series Pickup, 6-Cyl. 5.9 L Diesel, Pipe To Intercooler (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 5.87 IN |
| End 1 Inside Diameter | 2.95 in |
| End 2 Inside Diameter | 3.62 in |
| Minimum Clamping Length | 3.75 IN |
| Maximum Clamping Length | 4.06 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 0 |
| Centerline Length | 149 MM |
| End 1 Inside Diameter | 75 MM |
| End 2 Inside Diameter | 92 MM |
| Minimum Clamping Length | 95.3 MM |
| Maximum Clamping Length | 103.1 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075604822 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- Dodge Ram 3500 (1994-2002)
- Dodge Ram 2500 (1994-2002)
