(888) 312-8812 Login SignupGATES 26228 Molded Turbocharger Hose Kit
MSRP: $101.78
$9299
Save $8.79
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
GATES 26228 Part Description
Manufacturer
Product Description

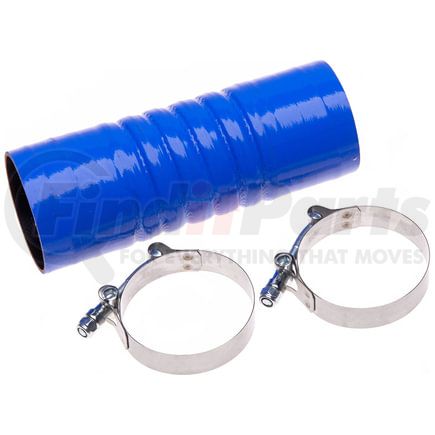

Molded Turbocharger Hose Kit
Application Summary
2004-03 Dodge, Ram Series Pickup, 6-Cyl. 5.9 L Diesel, Turbo To Pipe (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
GATES 26228 Specifications
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 7.83 IN |
| End 1 Inside Diameter | 2.72 in |
| End 2 Inside Diameter | 2.72 in |
| Minimum Clamping Length | 2.75 IN |
| Maximum Clamping Length | 3.06 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 0 |
| Centerline Length | 199 MM |
| End 1 Inside Diameter | 69 MM |
| End 2 Inside Diameter | 69 MM |
| Minimum Clamping Length | 69.9 MM |
| Maximum Clamping Length | 77.7 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075604815 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
GATES 26228 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 26228 |
| Carquest | 26228 |
| Chrysler | 5086569AA |
| NAPA Belts/Hose | 26228 |
GATES 26228 Fits Vehicles
- Dodge Ram 3500 (2003-2004)
- Dodge Ram 2500 (2003-2004)
