GATES part description
Product Description

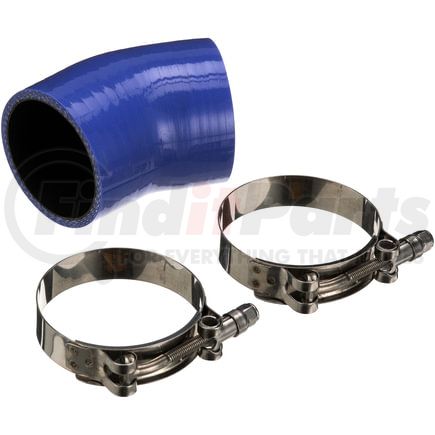

Molded Turbocharger Hose Kit
Application Summary
2004-03 Ford, Super Duty Pickup, V-8 6.0 L Diesel, Turbo To Pipe (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 4.125 IN |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| Minimum Clamping Length | 2.63 IN |
| Maximum Clamping Length | 2.94 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 0 |
| Centerline Length | 105 MM |
| End 1 Inside Diameter | 64 MM |
| End 2 Inside Diameter | 64 MM |
| Minimum Clamping Length | 66.8 MM |
| Maximum Clamping Length | 74.7 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075601692 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- Ford F-750 (2004)
- Ford F-650 (2004)
- Ford F650 (2004)
- Ford F750 (2004)
- Ford F-550 Super Duty (2003-2004)
- Ford F-450 Super Duty (2003-2004)
- Ford F-250 Super Duty (2003-2004)
- Ford Excursion (2003-2005)
- Ford F-350 Super Duty (2003-2004)
