Name: Four Seasons 77555 Reman Sanden/Sankyo SD7V16 Compressor w/ Clutch
SKU: 77555
Price: 437.79 USD
Availability: OutOfStock

FOUR SEASONS part description

Compressor Reman /Sanden

Product Description

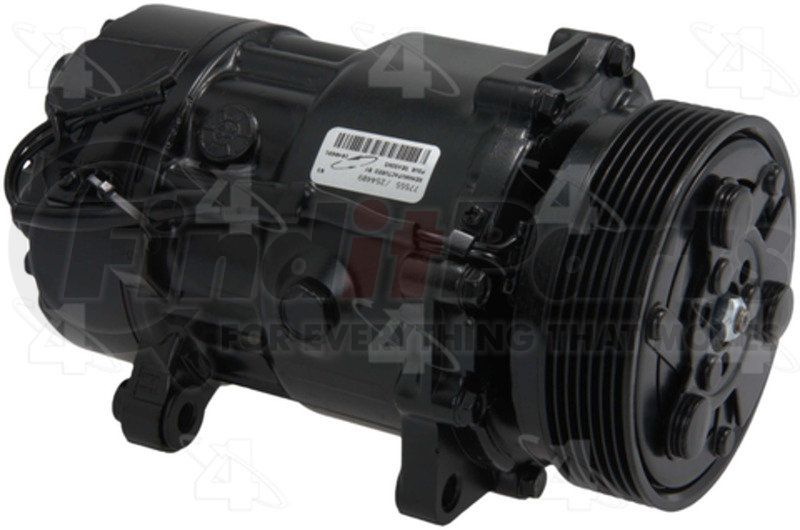

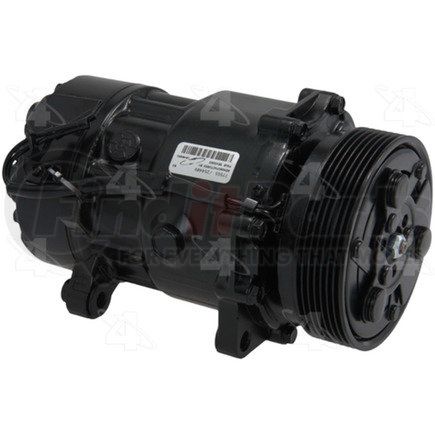

Reman Sanden/Sankyo SD7V16 Compressor w/ Clutch

Features & Benefits

Remanufactured compressors are 100 percent tested to ensure compressor function and noise level meets or exceeds OE specifications
Remanufactured compressors come pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications
Remanufactured compressors are individually vacuum and pressure tested to ensure no leaks
Remanufactured compressors come with the R12/R134A/1234yf required O-rings /sealing washers to install the compressor
Remanufactured Compressors are built in a ISO9001:2015 Certified facility to ensure consistent quality standards in the Re-manufacturing process

Product Attributes

Refrigerant Type	R134a
Distance From Clutch To Mounting Flange	1.3 IN
Terminal Type	Pin
Pulley Belt Type	Serpentine
Mounting Type	Ear Mount
Coil Voltage	12 2H
Oil Filled	Included
Clutch Included	Included
9044	4.750 in
Compatible Refrigerant Oil Type	PAG 46
9045	4.750 in
Coil Clock Position	1 Wire Lead
Pulley Groove Quantity	7
Compressor Type	SD7V16
Clutch Maximum Diameter	4.750 IN
Comp Head Prt Config	Rear-Vert-Pad
Compressor Head Type	VQL
Discharge Port Type	O-Ring
Electronic Control Valve	No
Mount Distance Mm	33.02 mm
Mounting Hardware?	Not Included
New or Reman	Remanufactured
O-ring A Number/desc	[24681] / Green O-Ring
O-Ring A Quantity	1
O-ring B Number/desc	[24661] / Green O-Ring
O-Ring B Quantity	1
Pulley Diameter Mm	120.65 mm
Suction Port Type	O-Ring
Switch Type	N/A
Type	Sanden/Sankyo
Belt Type	Serpentine
Clutch Included	Included
Coil Clock	1 Wire Lead
Coil Voltage	12 2H
Connector Type	Pin
Groove	7
Model	SD7V16
Mount Distance In	1.3 in
Mount Type	Ear Mount
Oil Type	PAG 46
Pulley Diameter In	4.750 in
Refrigerant Type	R134a

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8414308030
Harmonized Tariff Code (HTS)	8414308030
MSDS Sheet Number	0
Stock Status	S
UPC	00096361775558

Part Interchanges

FOUR SEASONS 77555 Cross Reference

We have 1 alternatives for the 77555 by FOUR SEASONS:

DENSO 471-7002

Fits Vehicles

Volkswagen Pointer Truck (1998-2001)
Volkswagen Bora (2005)
Volkswagen Sharan (2002-2008)
Volkswagen Pointer (1998-2003)
Seat Alhambra (2002-2008)
Seat Toledo (2001-2006)
Seat Leon (2001-2006)
Seat Ibiza (2001-2002)
Seat Cordoba (2001-2002)
Audi TT Quattro (2000-2001)
Audi TT (2000-2001)
Volkswagen Jetta (1999-2002)
Volkswagen Beetle (1998-2004)
Volkswagen Golf (1997-2006)

Quality, coverage, service—these are the Four Seasons® promise. A brand under the SMP Temperature Control Division, Four Seasons produces and supplies the automotive and truck parts market with a full line of replacement mobile climate control solutions. Four Seasons is one of the industry's largest aftermarket mobile climate control products suppliers and the world's largest compressor remanufacturer. With its unparalleled expertise and continuously expanding global reach, Four Seasons' customers can enjoy top-quality products that are meticulously tested, inspected, and validated before rolling out of the company's assembly plant. Four Seasons is both a manufacturer and a remanufacturer that strives to maintain excellent quality standards, sound reputation, and continuous innovation that keep it ahead of the competition.
