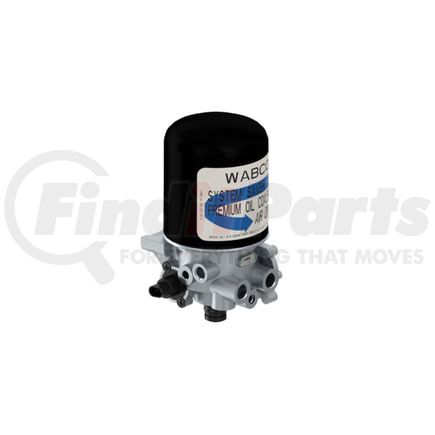

(888) 312-8812 Login SignupWABCO 4324210480 System Saver (AD-SysS) Air Brake Dryer with TCV and Coalescing Filter, Replaced by 4324210370
Tap to view 3 more
MSRP: $1,073.60
$89649
Save $177.11
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4324210480 Part Description
WABCO 4324210480 Specifications
Product Attributes
| Weight | 10 |
| Port Thread 4/23 | 1/4" - 18 NPTF |
| Port thread 4 | 1/4" - 18 NPTF |
| Voltage | 12 V |
| Calculated Volume (dm³) | 14.836 |
| Max. operating pressure | 10.3 Bar |
| Port thread 1 | 1/2" - 14 NPTF |
| Port thread 21 | 1/2" - 14 NPTF |
| Heating Connection | 280 Metri-Pack Nr. 1202 0599 |
| Cut-Out Pressure | 9.0 Bar |
| Size | 335 x 242 x 183 |
| Opening Pressure | 10.30 Bar |
| Temperature Range | -40°C to +80°C |
| Port thread 22 | 1/4" - 18 NPTF |
| Cartridge Type | Desiccant Cartridge |
| Exhaust | Snap-On Contour |
| Port thread 3 | JED- 463-0 |
| Comments | Turbo-Cut-Off Valve (TCV) Installed |
| Calculated Volume (Cubic Decimeter) | 14.836 |
| Technical specification | OE Specification |
| Product Category | Device |
| Part Type | Premium Original Quality |
WABCO 4324210480 Part Interchanges
| Brand | Part Number |
|---|---|
| Freightliner | TDAS4324210480 |
| Kenworth | S4324210480 |
| Mack | 21255206 |
| Meritor | S4324210480 |
| Volvo | 21255206 |
| Peterbilt | S4324210480 |
WABCO 4324210480 Cross References
We have 7 alternatives for the 4324210480 by WABCO:
WABCO 4324210480 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
