NGK SPARK PLUGS PTR5C13 Part Description
Manufacturer
Product Description

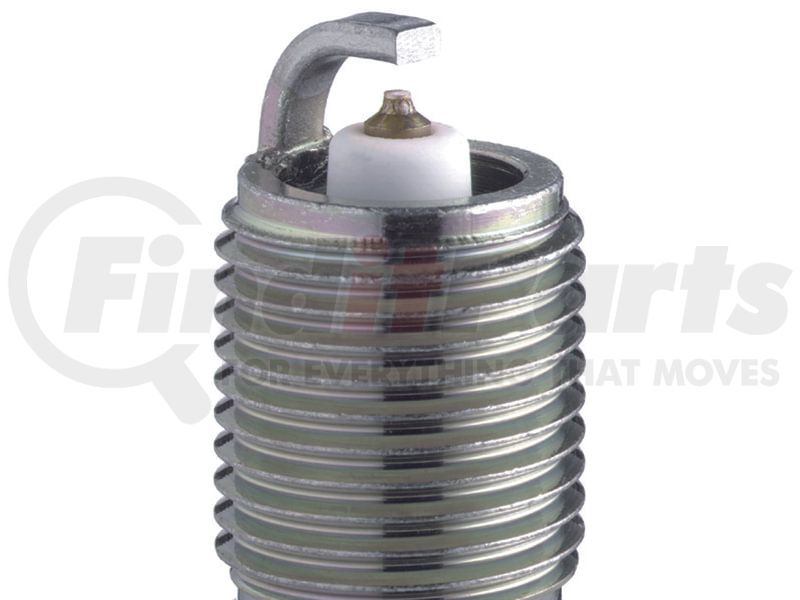

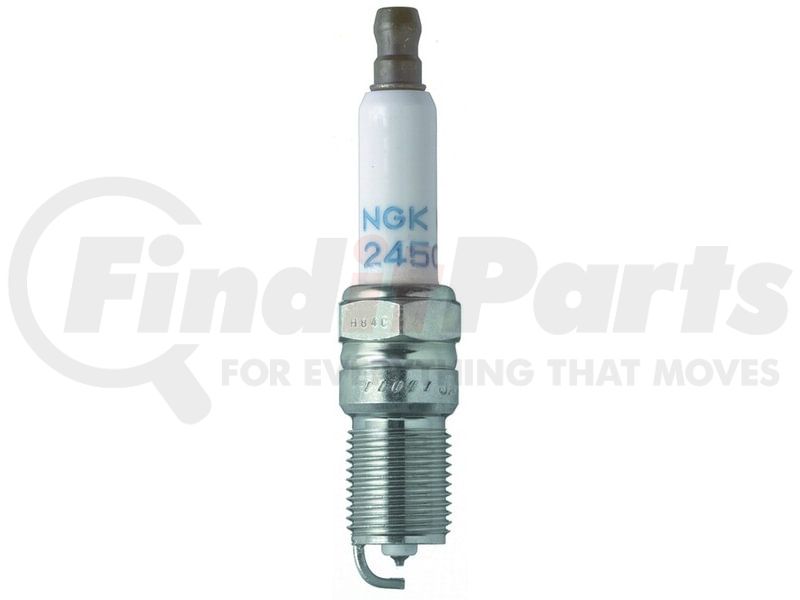

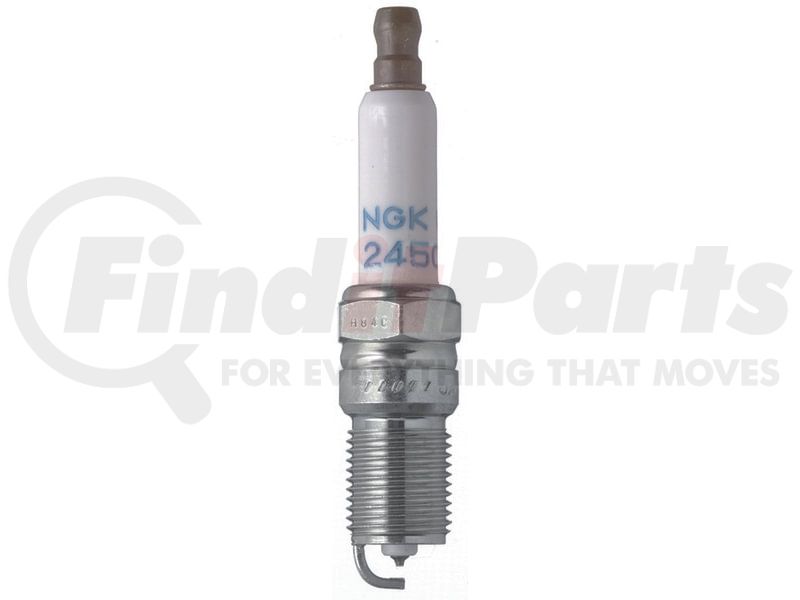

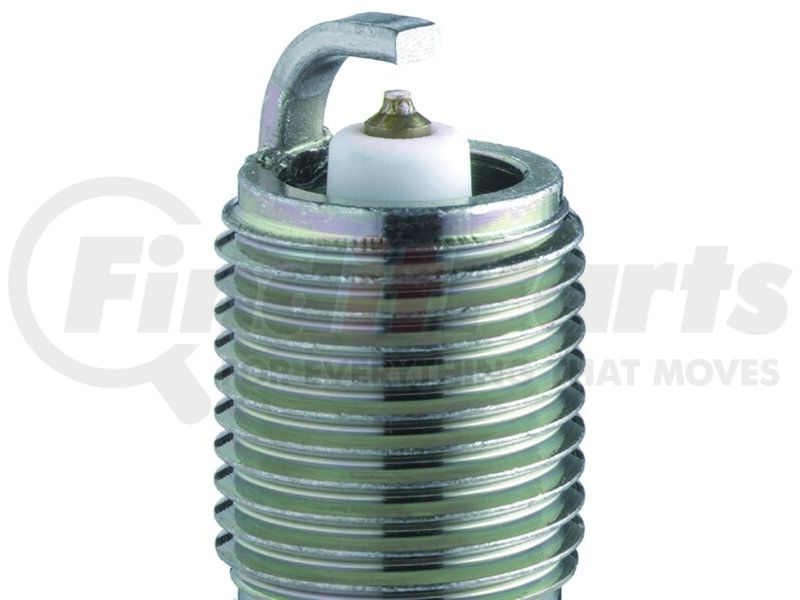

NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
NGK SPARK PLUGS PTR5C13 Specifications
Product Attributes
| Short Style Spark Plug | No |
| Part Number | PTR5C-13 |
| Stock Number | 7740 |
| Service Number | PTR5C-13 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .052 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Double Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.3 MM |
| Insulator Height | 52.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295177402 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS PTR5C13 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 41-812, 41-919, 12556183, 12561466, 41-937, 41-963, 41-948, 41-980, 41-987, 25164048, 1844038T, 41-810, 41-936, 41-942, 41-931, 41-943, 41-950, 12571535, 25165715 |
| AUTOLITE | APP605, XP605 |
| Autolite | APP104 |
| Bosch | 8111, 8113, HR7DPP33Y, HR6DPP33X, 8103, HR7DPP33V |
| CHAMPION | 7401 |
| Champion Spark Plug | 7963, RS12PYPB5, 7963-2 |
| DENSO Auto Parts | 4713, 4511, 5070, PT16EPR-L13, PT16TT, IT16TT, PT16EPR-C13 |
| E3 SPARK PLUGS | E354 |
| General Motors | 12556183, 25164048, 25165715 |
| Motorcraft | SP479, AGSF22WM, SP433, AGSF32WM, SP432, SP439A, SP493, SP-521, AGSF32FEC, AGSF32FM, AGSF32FMF6, AGSF32PM |
| N/A | PTR5C-13 |
| NGK | 7740 |
NGK SPARK PLUGS PTR5C13 Fits Vehicles
- Ford Explorer Sport (2001-2003)
- Ford F-53 Motorhome Chassis (1999-2004)
- Ford Focus (2011)
- Ford Transit Connect (2010-2013)
- Ford E-550 Super Duty (2003)
- Cadillac XLR (2007-2009)
- Cadillac STS (2007-2010)
- Cadillac SRX (2007-2009)
- Buick Lucerne (2006-2011)
- Mazda 5 (2006-2007)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2009)
- Ford Fusion (2006-2009)
- Cadillac DTS (2006-2011)
- Ford Explorer Sport Trac (2001-2005)
- Mercury Montego (2005-2007)
- Ford Freestyle (2005-2007)
- Mercury Mariner (2005-2008)
- Ford Five Hundred (2005-2007)
- Pontiac Bonneville (2004-2005)
- Ford E-350 Super Duty (1999-2019)
- Ford F-150 Heritage (2004)
- Mercury Monterey (2004-2005)
- Ford Freestar (2004-2005)
- Mazda B4000 (1994-1996)
- Mazda MPV (2002-2006)
- Mazda Navajo (1991-1994)
- Mazda 6 (2003-2005)
- Mazda Tribute (2001-2006, 2008)
- Ford E-550 Econoline Super Duty (2002)
- Ford E-450 Econoline Super Duty (1999-2002)
- Mercury Topaz (1989-1994)
- Mercury Sable (1996-2005)
- Mercury Mystique (1995-2000)
- Mercury Mountaineer (1997-2005)
- Mercury Marauder (2003-2004)
- Mercury Grand Marquis (1992-2010)
- Mercury Cougar (1994-1997, 1999-2002)
- Lincoln Town Car (1991-2011)
- Lincoln Navigator (1998-2004)
- Lincoln Mark VIII (1993-1998)
- Lincoln LS (2000-2005)
- Lincoln Continental (1995-2002)
- Lincoln Aviator (2003-2005)
- Lincoln Blackwood (2002)
- Ford Windstar (1996-2003)
- Ford Thunderbird (1994-1997)
- Ford Tempo (1989-1994)
- Ford Taurus (1996-2005)
- Ford Ranger (1990-1996, 2008, 2010-2011)
- Ford Mustang (1993-2004)
- Ford Fiesta (1978-1979)
- Ford F-550 Super Duty (1999-2004)
- Ford F-450 Super Duty (1999-2004)
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford F-250 (1997-1999)
- Ford F-150 (1997-2008)
- Ford Explorer (1991-2005)
- Ford Expedition (1997-2004)
- Ford Excursion (2000-2005)
- Ford Escape (2001-2008)
- Ford E-350 Econoline Club Wagon (1997-2002)
- Ford E-350 Club Wagon (2003-2005)
- Ford E-350 Econoline (1997-1998)
- Ford E-250 (2003-2014)
- Ford E-250 Econoline (1997-2002)
- Ford E-150 Econoline Club Wagon (1997-2002)
- Ford E-150 (2003-2014)
- Ford E-150 Club Wagon (2003-2005)
- Ford E-150 Econoline (1997-2002)
- Ford Econoline Super Duty (1997-1999)
- Ford E-450 Super Duty (2003-2019)
- Ford Crown Victoria (1992-2011)
- Ford Contour (1995-2000)
- Ford Aerostar (1990-1997)
- Pontiac Sunfire (1995-2002)
- Pontiac Grand Am (1995-2001)
- Oldsmobile Intrigue (1999-2002)
- Oldsmobile Aurora (1995-1999, 2001-2003)
- Oldsmobile Alero (1999-2001)
- GMC Yukon (1998-2000)
- GMC P3500 (1998-1999)
- GMC K3500 (1998-2000)
- GMC K2500 Suburban (1998-1999)
- GMC K2500 (1998-2000)
- GMC K1500 Suburban (1998-1999)
- GMC K1500 (1998-1999)
- GMC Savana 3500 (1998-2002)
- GMC Savana 2500 (1998-2002)
- GMC Savana 1500 (1998-2002)
- GMC C3500 (1998-2000)
- GMC C2500 Suburban (1998-1999)
- GMC C2500 (1998-2000)
- GMC C1500 Suburban (1998-1999)
- GMC C1500 (1998-1999)
- Chevrolet Tahoe (1998-2000)
- Chevrolet P30 (1998-1999)
- Chevrolet Malibu (1997-1999)
- Chevrolet K3500 (1998-2000)
- Chevrolet K2500 Suburban (1998-1999)
- Chevrolet K2500 (1998-2000)
- Chevrolet K1500 (1998-1999)
- Chevrolet K1500 Suburban (1998-1999)
- Chevrolet Express 3500 (1998-2002)
- Chevrolet Express 2500 (1998-2002)
- Chevrolet Express 1500 (1998-2002)
- Chevrolet Cavalier (1995-2002)
- Chevrolet Camaro (1993-1995)
- Chevrolet C3500 (1996, 1998-2000)
- Chevrolet C2500 Suburban (1998-1999)
- Chevrolet C2500 (1998-2000)
- Chevrolet C1500 Suburban (1998-1999)
- Chevrolet C1500 (1998-1999)
- Cadillac Seville (1993-2004)
- Cadillac Escalade (1999-2000)
- Cadillac Eldorado (1993-2002)
- Cadillac DeVille (1994-2005)
