(888) 312-8812 Login SignupNGK SPARK PLUGS BPR7HS NGK Standard Spark Plug
Tap to view 2 more
$3.54
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS BPR7HS Part Description
Manufacturer
Product Description

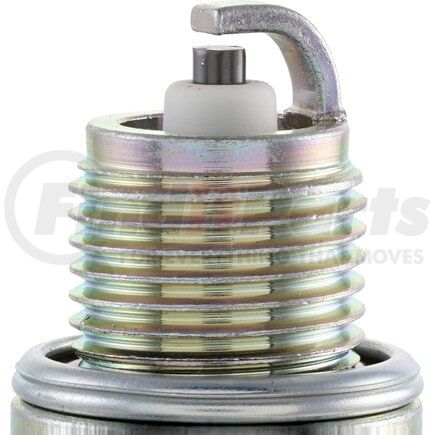

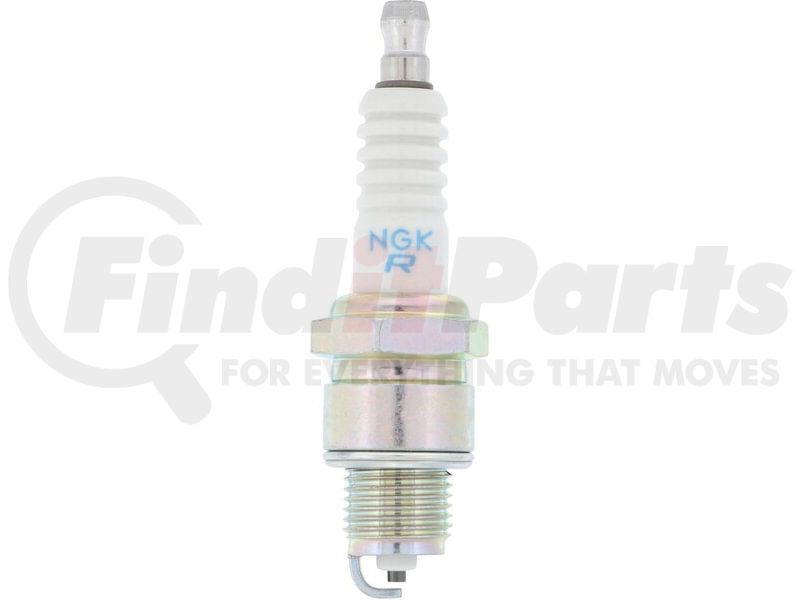

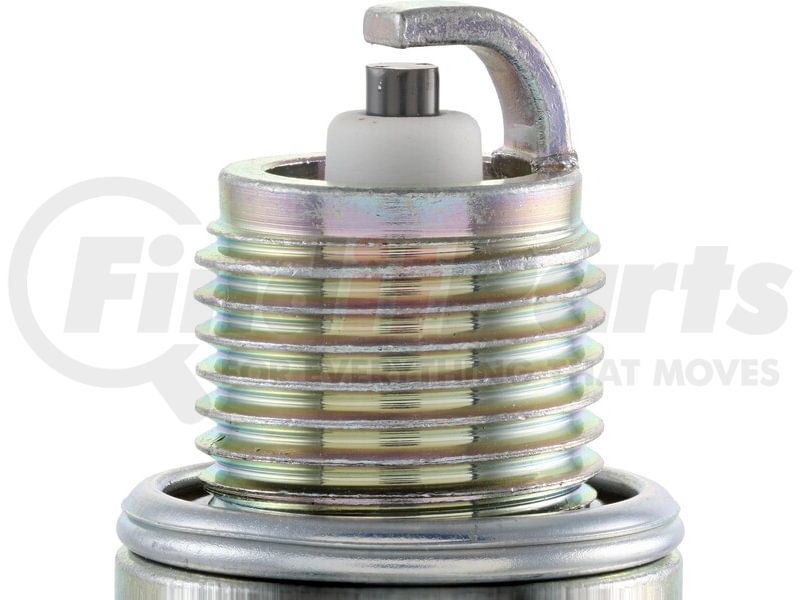

NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BPR7HS Specifications
Product Attributes
| Stock Number | 6422 |
| Part Number | BPR7HS |
| Short Style Spark Plug | No |
| Service Number | BPR7HS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.14 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 54.3 MM |
| Reach | 12.7 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295164228 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BPR7HS Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 4123 |
| Aprilia | 2BEN000088 |
| Autolite | 283 |
| Bosch | 7531, WR5BC, 7931 |
| CHAMPION | 814 |
| Champion Spark Plug | RL82YCC, 814, 814S, 932M, 932S, 814C, 932-1, QL82YC, QL82YC S, RL82YC |
| DENSO Auto Parts | 4022, W22FPR-U, W22FPR |
| E3 SPARK PLUGS | E332 |
| E3 Spark Plugs | E3.32 |
| Generac | 0K20920111 |
| Honda | 98076-57717 |
| N/A | 936M, W22FP, CW8NP, 09482-00105, 98076-57719, 94700-00050, 92070-1141, 98076-57711-00, N14YC, W22FP-US, 4021, W22FP-U, 92070-1202, 328-1, L82YC, 328, 936-1, L78YC, 936S, L64Y, L78YC S, L81Y, N14Y, 94701-00050, 94703-00050, W5BC, W5B, BPR7HS |
| NGK | 6422 |
| Piaggio | AP2BEN000088 |
| Suzuki | 09482-00255 |
| Torch | E7RTC, E7TC |
| Yamaha | 94701-00227, 94703-00227 |
NGK SPARK PLUGS BPR7HS Fits Vehicles
- Volvo 1800 (1967, 1970-1972)
- Volvo 145 (1968)
- Volvo 144 (1967-1968)
- Volvo 142 (1968)
- Volvo 122 (1967-1968)
- Vento Triton LI (2007)
- Suzuki T125R (1971)
- Suzuki A100 (1976)
- E-TON Matrix 150 (2010)
- E-TON Matrix 50 (2010)
- E-TON Beamer 50 (2010)
- Aprilia SR 50 Ditech (2002-2004)
- Aprilia Mojito Retro 50 (1999-2003)
- Aprilia Mojito Custom 50 (1999-2004)
- Suzuki TC120 (1971)
- TGB 90 Adventure Series (2005-2006)
- TGB 50 Adventure Series (2005-2006)
- E-TON Viper 70 (2005)
- Polaris Predator 50 (2004-2006)
- Arctic Cat 90 2x4 4-Stroke (2004)
- Arctic Cat 50 2x4 (2004-2005)
- Polaris Predator 90 (2003-2006)
- Kawasaki KFX80 (2003-2006)
- Yamaha YW50 Zuma (2002-2005, 2008-2011)
- Yamaha YJ50RA Vino Classic (2002-2005)
- Kasea Skyhawk 90 (2002-2005)
- E-TON Viper 90 (2002-2005)
- E-TON Viper 50 (2002-2004)
- Bombardier DS90 (2002, 2005-2006)
- Bombardier DS50 (2002, 2005-2006)
- Arctic Cat 90 2x4 (2002-2004)
- Yamaha YJ50 Vino (2001-2004)
- Polaris Sportsman 90 (2001-2006)
- Polaris Scrambler 90 (2001-2003)
- Polaris Scrambler 50 (2001-2003)
- E-TON Sierra 90 (2000-2002)
- E-TON Thunder 90 (1999-2001)
- Ducati 400 (1997)
- Yamaha CW50 Zuma (1989-1990)
- Yamaha CG50 Jog (1988-1990)
- Suzuki LT80 QuadSport (1987-2006)
- Yamaha BW80 (1986-1988, 1990)
- Yamaha CV80 Riva 80 (1983-1984)
- Porsche 912 (1965-1969)
