NGK SPARK PLUGS BR6HS Part Description
Manufacturer
Product Description

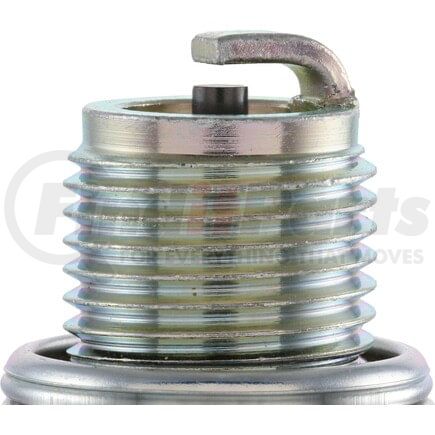

NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR6HS Specifications
Product Attributes
| Stock Number | 3922 |
| Part Number | BR6HS |
| Short Style Spark Plug | No |
| Service Number | BR6HS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Regular |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.14 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295139226 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR6HS Part Interchanges
| Brand | Part Number |
|---|---|
| NGK | 3922 |
| Torch | E6C, E6RC |
| Magneti Marelli | CW67NR, CW6NR, CW7NR |
| Honda | 98076-56716 |
| DENSO Auto Parts | 3072, W20FSRU, 6053, W20FSR |
| Daihatsu | 999-06910-P9-002 |
| E3 Spark Plugs | E3.32 |
| Kawasaki | 92070-2008, 92070-2117 |
| Champion Spark Plug | 931M, 931S, QL82C S, RL86C, 933-1, QL82C, QL86C S, RL7J, 933S, QL7J5, QL86C, RL85, RL86, 830, 931-1, 933M, QL86, RL82 |
| Autolite | 3686 |
| Robin | 065-01405-10, 065-01401-50 |
| Suzuki | 09482-00088 |
| Yamaha | 90793-20057, 94701-00248, 94702-00248, 94709-00248 |
| Bosch | WR7AC, WR7A, 79026 |
| ACDelco | R42CF, R42F |
| N/A | 1765031, AE3C, 650149730, 160110-78011, 756757, MS851133, 0190-18-110, 820541810, 13451-6771-6, 150260510, 77-321, N17, 159010-04120 |
NGK SPARK PLUGS BR6HS Fits Vehicles
- Cub Cadet Challenger 400 4x4 (2018)
- Cub Cadet Challenger 400 (2016-2018)
- Cub Cadet Challenger 400 LX (2016-2018)
- Yamaha LB80 Chappy (1977)
- Yamaha LB50 Chappy (1978-1982)
- Yamaha LB80 II Chappy (1976-1978)
- Kubota RTV400Ci (2012-2018)
- KTM 50 SXR Pro Sr (1997)
- KTM 50 SXR Pro Jr (1997)
- Yamaha LB50 (1981-1982)
- Arctic Cat Kitty Cat (1977-1981, 1985-1999)
- Yamaha TY80 (1974-1975)
- Honda MR50 (1974-1975)
- Volkswagen Transporter (1954-1966)
- Volkswagen Thing (1973-1974)
- Volkswagen Super Beetle (1971-1980)
- Volkswagen Squareback (1966-1973)
- Volkswagen Karmann Ghia (1956-1974)
- Volkswagen Fastback (1966-1973)
- Volkswagen Campmobile (1968-1971)
- Chevrolet Corvair (1962-1965)
- Aston Martin DBD (1958-1959)
- Aston Martin DB3 (1953-1956)
- Aston Martin DB2-4 (1953-1957)
- Aston Martin DB (1957-1959)
- Volkswagen Beetle (1954-1979)
