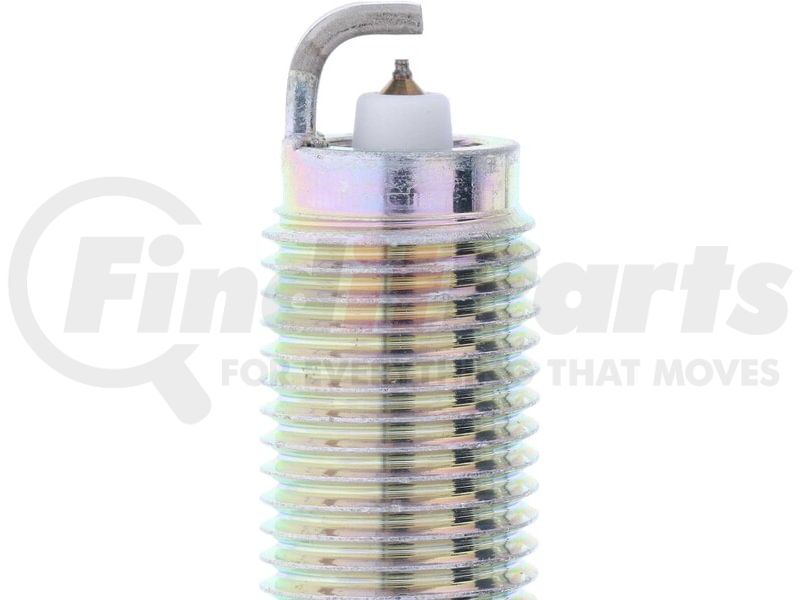

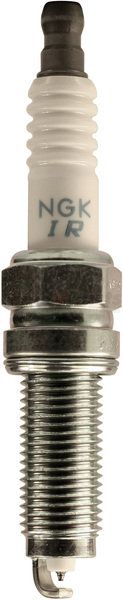

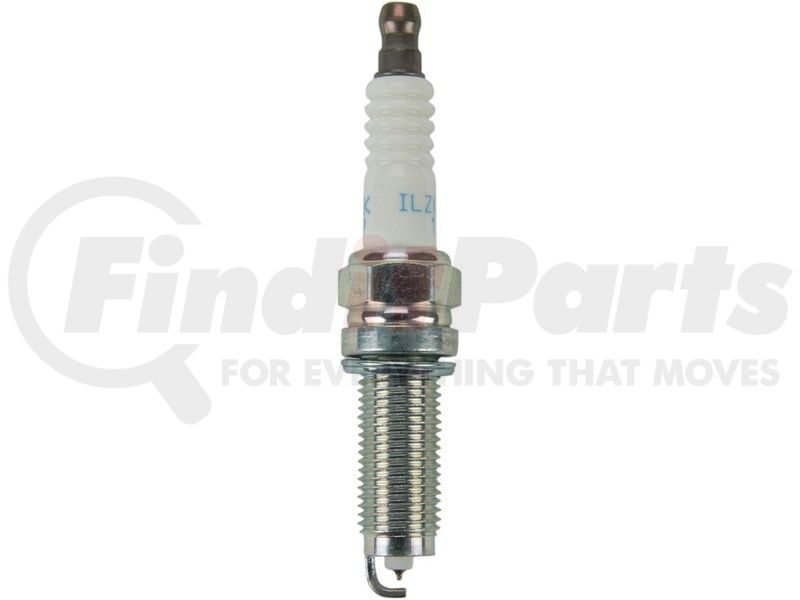

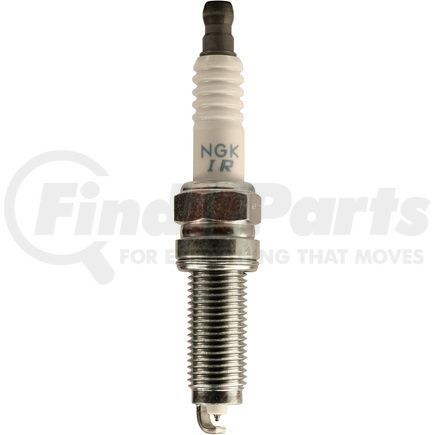

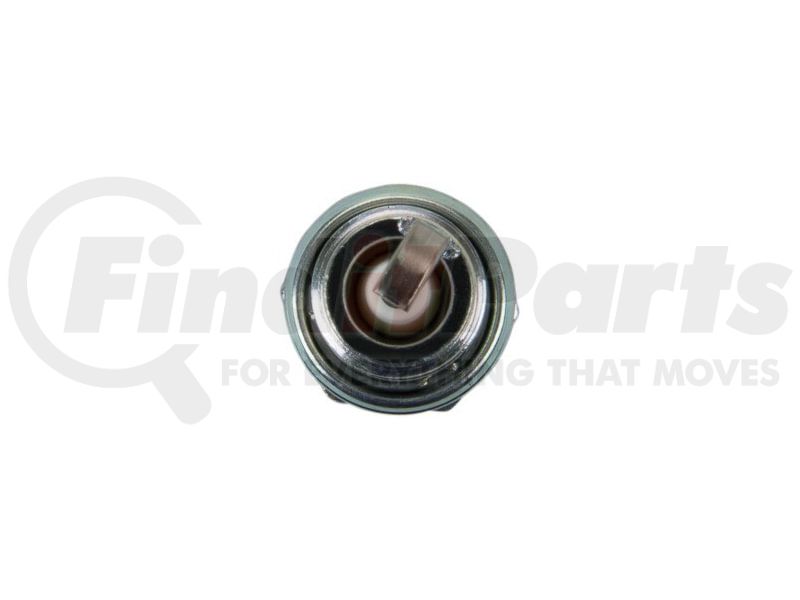

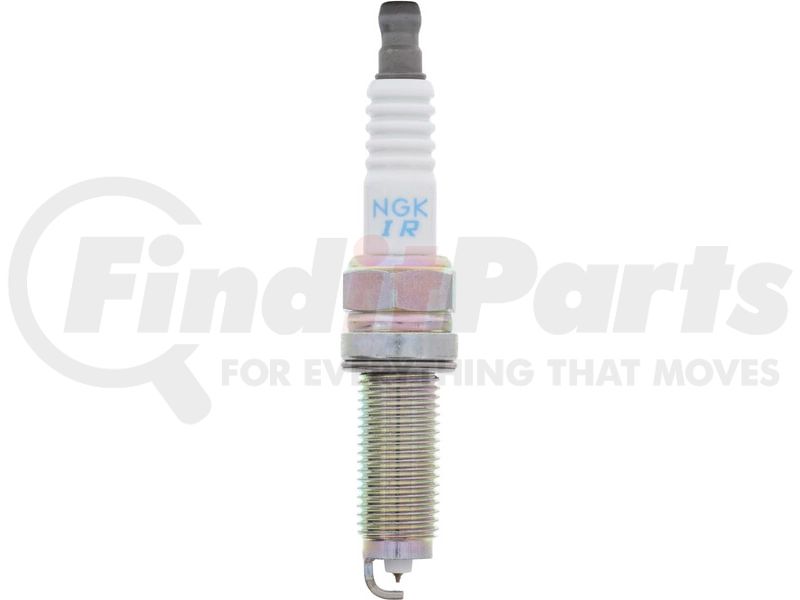

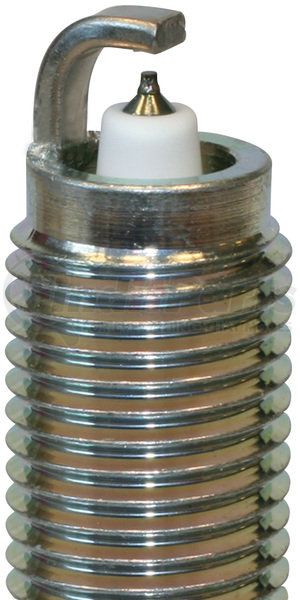

NGK Spark Plugs ILZKR7B11 - NGK Laser Iridium Spark Plug
- Part Number
- ILZKR7B11
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium Spark Plug
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NGK SPARK PLUGS part description
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Product Attributes
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.01 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 1.043 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.059 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | Yes |
| 9506 | 0.20 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Long Projection |
| Stock Number | 7751 |
| Part Number | ILZKR7B11 |
| Short Style Spark Plug | No |
| Service Number | ILZKR7B11 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295177518 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Jeep Grand Cherokee WK (2022)
- Ram ProMaster 1500 (2022-2024)
- Ram ProMaster 2500 (2022-2024)
- Ram ProMaster 3500 (2022-2024)
- Jeep Grand Cherokee L (2021-2024)
- Chrysler Grand Caravan (2021-2024)
- Chrysler Voyager (2020-2024)
- Jeep Gladiator (2020-2024)
- Ram 1500 (2019-2024)
- Jeep Wrangler (2018-2024)
- Acura MDX (2017-2020)
- Chrysler Pacifica (2017-2024)
- Jeep Grand Cherokee (2016-2024)
- Dodge Durango (2016-2024)
- Acura RDX (2013-2018)
- Honda Crosstour (2012-2015)
- Honda Accord Crosstour (2010-2011)
- Acura TSX (2010-2014)
- Acura TL (2009-2012)
- Honda Ridgeline (2009-2014)
- Honda Pilot (2009-2011)
- Honda Odyssey (2008-2010)
- Honda Accord (2008-2017)
