NGK SPARK PLUGS PTR5F11 Part Description
Manufacturer
Product Description

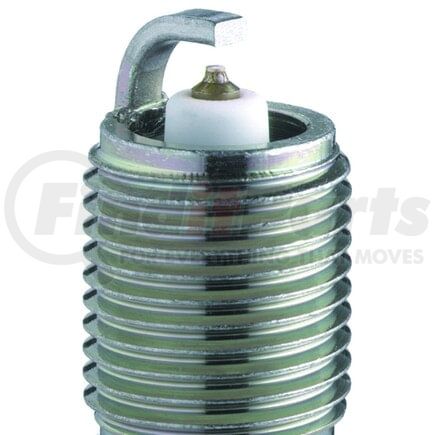

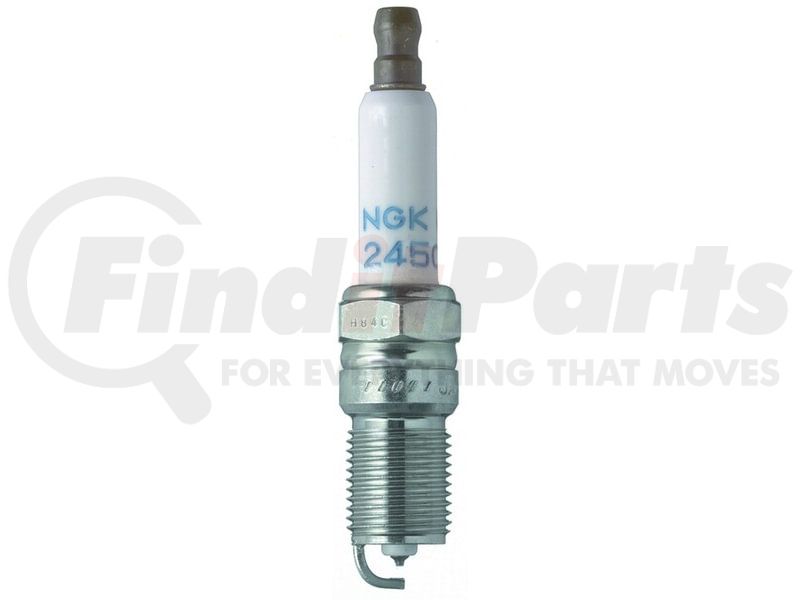

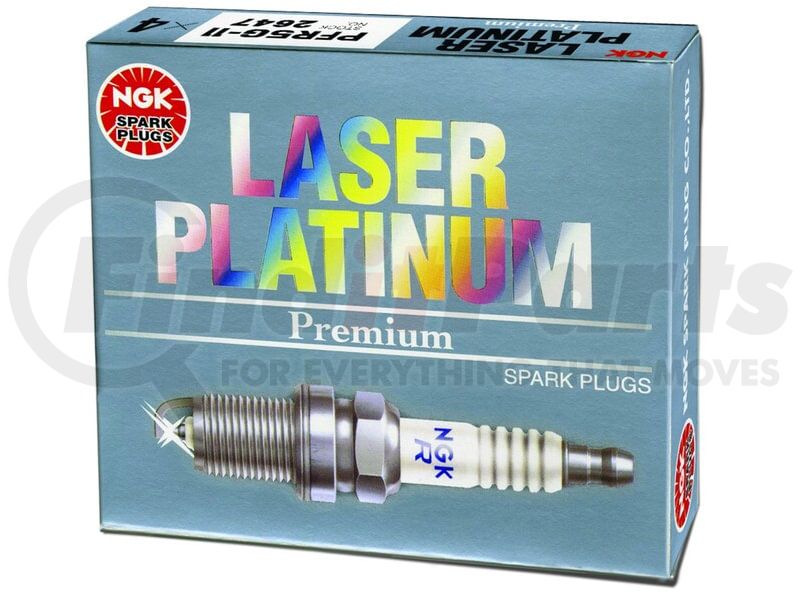

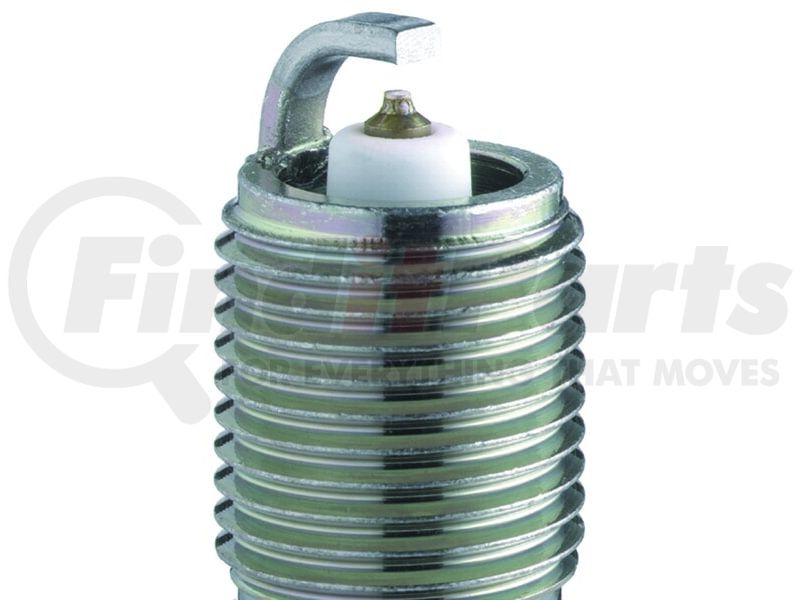

NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
NGK SPARK PLUGS PTR5F11 Specifications
Product Attributes
| Short Style Spark Plug | No |
| Stock Number | 6579 |
| Part Number | PTR5F-11 |
| Service Number | PTR5F-11 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Copper |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Double Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.1 MM |
| Insulator Height | 52.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295165799 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS PTR5F11 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 41-979, 19158038 |
| AUTOLITE | APP105 |
| Autolite | APP605, APP5243 |
| Champion Spark Plug | RS12PYP, 7401, 7401-2, 7408-2 |
| DENSO Auto Parts | 4511, 4713, PT16TT, IT16TT |
| E3 SPARK PLUGS | E354 |
| Ford | AGSF32FEC |
| Motorcraft | SP439, SP500, AGSF22PP, AGSF32FEC |
| N/A | PTR5F-11 |
| NGK | 6579 |
| Volvo Penta | 3858996, 3858997, 3861632, 21452622 |
NGK SPARK PLUGS PTR5F11 Fits Vehicles
- Volvo 780 (1987-1990)
- Volvo 760 (1983-1990)
- Volvo 265 (1976-1981)
- Volvo 262 (1976, 1978-1981)
- Volvo 264 (1976-1982)
- Ford E-150 (2009-2014)
- GMC Yukon XL 1500 (2007-2008)
- Panoz Esperante (2005)
- Ford E-350 Super Duty (1999-2004)
- Ford F-150 Heritage (2004)
- Mazda B3000 (1994-1999, 2001-2008)
- Mazda MPV (2000-2001)
- Mazda B2500 (1998-2001)
- Mazda B2300 (1994-1997, 2001-2010)
- Audi V8 Quattro (1990-1991)
- Mazda 6 (2003-2008)
- Mercedes-Benz 300TE (1988-1993)
- Mercedes-Benz 300SEL (1988-1991)
- Mercedes-Benz 300SE (1988-1991)
- Mercedes-Benz 300E (1986-1993)
- Mercedes-Benz 300CE (1988-1989)
- Mercedes-Benz 260E (1987-1989)
- Mercedes-Benz 190E (1984-1993)
- Ford E-450 Econoline Super Duty (2000-2002)
- Merkur XR4Ti (1985-1989)
- Merkur Scorpio (1988-1989)
- Mercury Zephyr (1978-1982)
- Mercury Topaz (1984-1988, 1992-1994)
- Mercury Sable (1986-2005)
- Mercury Marquis (1983-1984)
- Mercury Lynx (1982, 1984-1985)
- Mercury LN7 (1982-1983)
- Mercury Cougar (1981, 1984-1986)
- Mercury Capri (1976-1977, 1979-1984)
- Mercury Bobcat (1975-1980)
- Ford Windstar (1995-2000)
- Ford Thunderbird (1983-1988)
- Ford Tempo (1984-1989, 1992-1994)
- Ford Taurus (1986-2007)
- Ford Ranger (1983-2009)
- Ford Probe (1990-1992)
- Ford Pinto (1974-1980)
- Ford Mustang II (1974-1978)
- Ford Mustang (1979-1986, 2000)
- Ford LTD (1983-1985)
- Ford Granada (1981-1982)
- Ford Fiesta (1980)
- Ford Fairmont (1978-1982)
- Ford F-250 (1997-1999)
- Ford F-150 (1993-1995, 1998, 2000-2003)
- Ford F-100 (1983)
- Ford Escort (1982-1985)
- Ford EXP (1982-1985)
- Ford E-350 Econoline Club Wagon (1997-2002)
- Ford E-350 Club Wagon (2003-2004)
- Ford E-350 Econoline (1997-1998)
- Ford E-250 (2003-2004, 2009-2014)
- Ford E-250 Econoline (1997-2002)
- Ford Econoline Super Duty (1999)
- Ford E-450 Super Duty (2003-2004)
- Ford Courier (1977-1982)
- Ford Bronco II (1984-1990)
- Ford Aerostar (1986-1997)
- Pontiac Grand Am (1985-1987)
- Pontiac Firebird (1993-1997)
- Pontiac Bonneville (1987-1988)
- Oldsmobile Toronado (1986-1987)
- Oldsmobile Delta 88 (1986-1988)
- Oldsmobile Cutlass Supreme (1991-1995)
- Oldsmobile Cutlass Cruiser (1987-1988)
- Oldsmobile Cutlass Ciera (1986-1988)
- Oldsmobile Cutlass Calais (1988)
- Oldsmobile Calais (1985-1987)
- Oldsmobile 98 (1986-1987)
- Chevrolet Vega (1975-1976)
- Chevrolet Monte Carlo (1995)
- Chevrolet Lumina (1991-1994)
- Chevrolet Corvette (1992-1996)
- Chevrolet Caprice (1994-1996)
- Chevrolet Camaro (1996-1997)
- Cadillac Fleetwood (1994-1996)
- Buick Somerset Regal (1985)
- Buick Somerset (1986-1987)
- Buick Skylark (1986-1988, 1995)
- Buick Roadmaster (1994-1996)
- Buick Riviera (1986-1987)
- Buick LeSabre (1986-1988)
- Buick Electra (1986-1987)
- Buick Century (1986-1988)
- Eagle Premier (1988)
- Eagle Medallion (1988-1989)
- DeLorean DMC 12 (1981-1983)
- Peugeot 505 (1987-1991)
