NGK SPARK PLUGS BR9EG Part Description
Manufacturer
Product Description

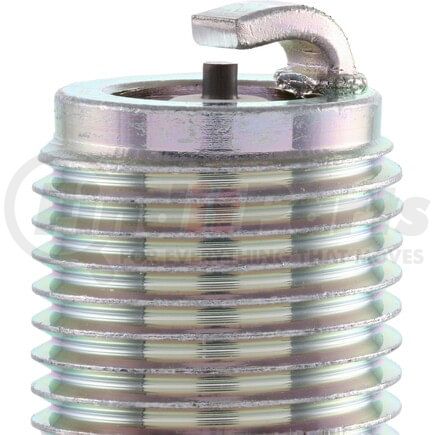

NGK Racing Spark Plug
Features & Benefits
- DESIGNED FOR RACING: Conventional nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR9EG Specifications
Product Attributes
| Part Number | BR9EG |
| Stock Number | 3230 |
| Short Style Spark Plug | No |
| Service Number | BR9EG |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .024 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.12 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295132302 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR9EG Part Interchanges
| Brand | Part Number |
|---|---|
| NGK | 3230 |
| Honda | 98079-59679 |
| Yamaha | 90793-20135, 94701-00324, 94702-00324, 94709-00324 |
| DENSO Auto Parts | W27ESR-V, 4049 |
| Kawasaki | 92070-1063 |
| Champion Spark Plug | QN84, 895 |
NGK SPARK PLUGS BR9EG Fits Vehicles
- Gas Gas EC 125 (2010)
- Polini XP65R (2010)
- Husqvarna WRE 125 (2010)
- Husqvarna SM 125 (2010)
- TM SMM125 (2009)
- TM MX85 (17/14) (2009)
- TM EN125 (2009)
- TM SMR125 (2009)
- TM MX85 (19/16) (2009)
- TM MX144 (2009, 2011)
- TM EN144 (2009)
- Honda CR125R (1999-2007)
- TM MX300 (1998-2003, 2011-2012)
- Husqvarna WR125 (1998-2006, 2009-2012)
- Husqvarna CR125 (1998-2006, 2009-2010, 2012)
- TM 300E (1996-2003)
- TM MX250 (1995-2003, 2011-2012)
- TM 80E (1995-2000)
- TM 125E (1995-2003)
- TM MX80 (1995-2000)
- TM MX125 (1995-2003, 2009-2012)
- TM 250E (1995-2003)
- Yamaha YZ125 (1992-1993, 1999-2010)
- Honda CR250R (1987-1988)
