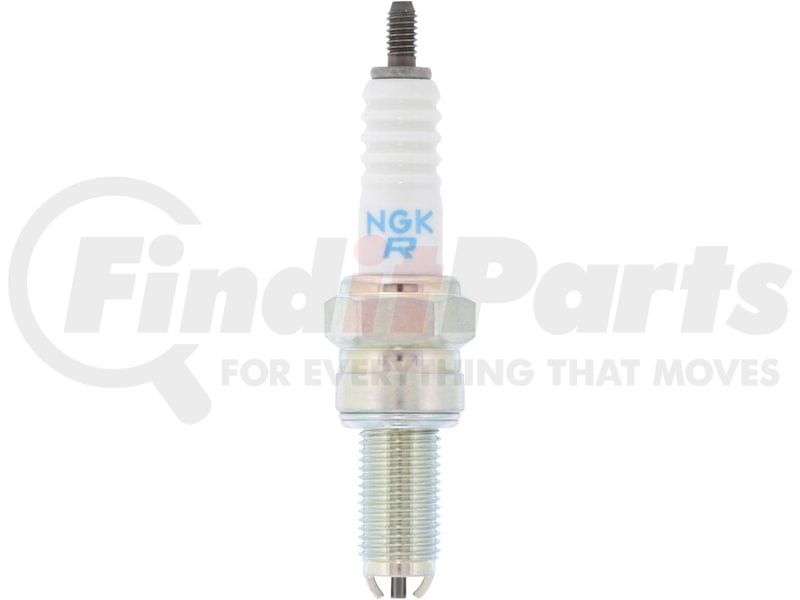

NGK SPARK PLUGS CR9EK Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS CR9EK Specifications
Product Attributes
| Part Number | CR9EK |
| Stock Number | 4548 |
| Short Style Spark Plug | No |
| Service Number | CR9EK |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |

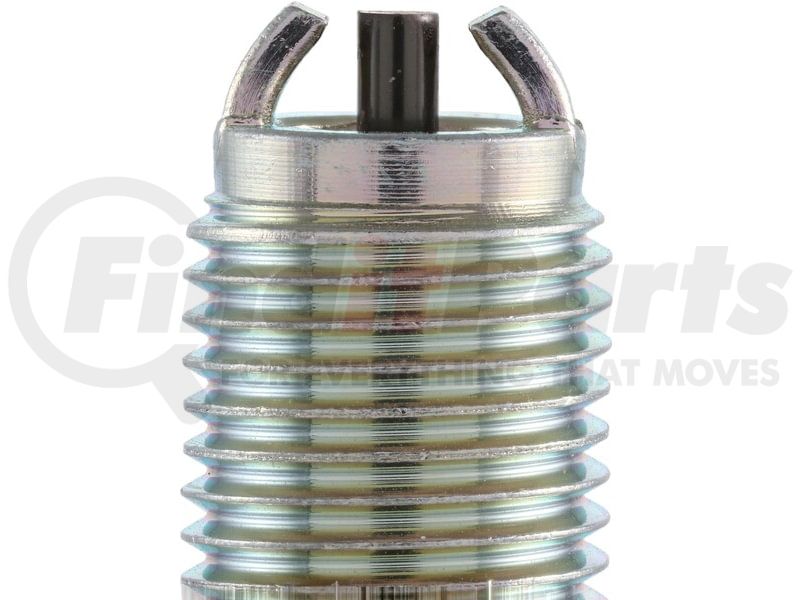

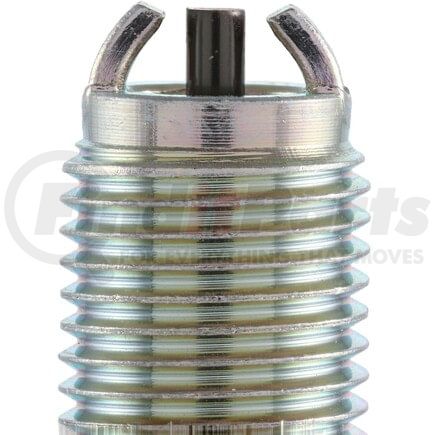

| Ground Configuration | Multi-Ground Electrode |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 2 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.92 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.10 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 48.8 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M10 - 1.0 |
| Center Electrode Insulator Tip Projection | 2.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295145487 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS CR9EK Cross References
NGK SPARK PLUGS CR9EK Fits Vehicles
- Triumph Tiger 900 Rally Aragon Edition (2024)
- Triumph Tiger 900 GT Aragon Edition (2024)
- Triumph Daytona 660 (2025)
- Triumph Tiger 900 Bond Edition (2022-2023)
- Triumph Street Triple S (2017)
- Triumph Street Triple RS (2017)
- Triumph Tiger 850 Sport (2021-2024)
- Triumph Tiger 1200 Desert Edition (2020-2021)
- Triumph Tiger 1200 Alpine Edition (2020-2021)
- Triumph Tiger 900 Rally Pro (2020-2024)
- Triumph Tiger 900 Rally (2020-2023)
- Triumph Tiger 900 GT Pro (2020-2024)
- Triumph Tiger 900 GT Low (2020, 2022-2023)
- Triumph Tiger 900 GT (2020-2024)
- Triumph Tiger 900 (2020)
- Triumph Tiger 1200 XRx Low (2019-2020, 2022)
- Triumph Tiger 1200 XRx (2019, 2022)
- Triumph Tiger 1200 XRt (2019-2020, 2022)
- Triumph Tiger 1200 XR (2019-2020, 2022)
- Triumph Tiger 1200 XCx (2019-2020, 2022)
- Triumph Tiger 1200 XCa (2019-2020, 2022)
- Kawasaki Z800 ABS (2016)
- Triumph Street Triple Rx (2016)
- Triumph Tiger 800 XCx Low (2016-2017)
- Triumph Tiger 800 XRx Low (2016-2019)
- Triumph Tiger 800 XCA (2016-2020)
- Triumph Tiger 800 XRT (2016-2020)
- Kawasaki ZR800 Z800 ABS (2016)
- Triumph Tiger 800 XRx (2015-2020)
- Triumph Daytona 675 ABS (2015)
- Triumph Tiger 800 XCx (2015-2020)
- Triumph Daytona 675 R ABS (2015)
- Triumph Tiger 800 XR (2015-2020)
- Triumph Street Triple R ABS (2014-2016, 2018)
- Triumph Street Triple ABS (2014-2016)
- Kawasaki ZX1100 GPZ ABS (1996)
- Triumph Daytona 675 R (2011-2014, 2016-2017)
- KTM 250 SX-F (2013)
- Cannondale C440R (2002)
- Cannondale E440 (2002)
- Cannondale X440 (2002)
- Triumph Tiger 800 XC ABS (2011-2013)
- Triumph Tiger 800 XC (2011, 2014-2016, 2018-2019)
- Triumph Tiger 800 ABS (2011-2015)
- Triumph Tiger 800 (2011, 2015)
- Triumph Street Triple R (2009-2013, 2017)
- Kawasaki JT1500 STX (2009-2010)
- Yamaha WR250X (2008-2011)
- Yamaha WR250R (2008-2011, 2014-2019)
- Triumph Street Triple 675 (2008-2013)
- Triumph Tiger (2007-2010)
- Yamaha FZS1000 FZ1 (2007-2009)
- Kawasaki JT1500 Ultra LX (2007-2016)
- Yamaha YZF-R1 LE (2006)
- Triumph Daytona 675 (2006-2014, 2016)
- Triumph Daytona 650 (2005)
- Kawasaki Z750S (2005-2006)
- Yamaha YZF-R1 (2004-2008)
- Yamaha FZS600 FZ6 (2004-2009)
- Kawasaki JT1500 STX-15F (2004-2016)
- Triumph Daytona 600 (2003-2004)
- Kawasaki JT1200 STX-12F (2003-2007)
- Triumph Speed Triple (2002-2004, 2007-2008)
- Triumph Sprint ST (2002-2010)
- Triumph Daytona 955i (2002-2004)
- Triumph Speed Four (2002-2005)
- Triumph Sprint RS (2002-2004)
- Cannondale Cannibal 440 (2002-2003)
- Cannondale Blaze 440 (2002-2003)
- Cannondale Moto 440 (2002)
- Cannondale Speed 440 (2002-2003)
- Kawasaki ZRX1200 (2001-2005)
- Kawasaki ZX1200 Ninja ZX-12R (2001-2002)
- Triumph TT600 (2000-2003)
- Suzuki GSX750F Katana (1999-2006)
- Kawasaki ZRX1100 (1999-2000)
- Suzuki TL1000R (1998-2003)
- Suzuki TL1000S (1997-2001)
- Suzuki GSF600S Bandit (1996-2003)
- Suzuki GSX600F Katana (1996-2006)
- Kawasaki ZX1100 GPZ (1995-1997)
- Kawasaki ZX1100 Ninja ZX-11 (1995-1997)
- Suzuki DR350SE (1994-1999)
- Suzuki DR350 (1994-1999)
- Kawasaki ZX900 Ninja ZX-9R (1994-2003)
- Suzuki GSX-R750 (1993)
- Suzuki GSX-R600 (1992-1993)
