FEL-PRO 1016 Part Description
Manufacturer
Product Description

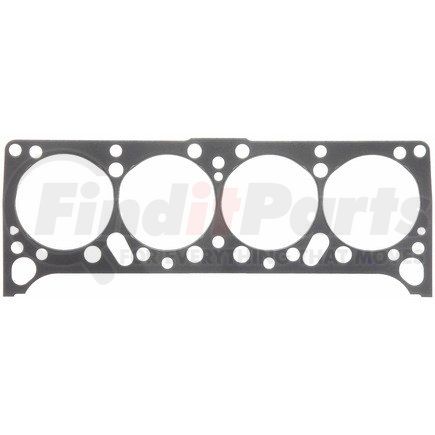

Engine Cylinder Head Gasket
Features & Benefits
- Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
- Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.
- Raises combustion sealing force to roughly three times that of standard head gaskets.
- Steel wire rings for the greatest combustion seal strength.
- Not intended for use in emission controlled vehicles.
FEL-PRO 1016 Specifications
Product Attributes
| Material | Steel core laminate |
| Thickness | 0.039 IN |
| Grade Type | Performance |
| Cylinder Bore Diameter | 4.300 IN |
| Gasket Sealant Included | No |
| Application Notes | Exc. 326, 350 Engs. |
| Bore Size (in.) | 4.300 IN |
| Combustion Chamber Volume (cc) | 9.400 |
| Combustion Seal Design | Pre-flattened steel wire |
| Engine Displacement | 389, 400, 400 Ram Air, 400 Ram Air IV, 421, 428, 455, 455 H.O., 455 Super Duty |
| Engine Family | Pontiac V8 |
| Mfg. | GM Performance |
| Product Notes | Minimal brinelling of aluminum heads |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8484100000 |
| Harmonized Tariff Code (Schedule B) | 8484100000 |
| Harmonized Tariff Code (HTS) | 8484100000 |
| UPC | 00084113010163 |
| VMRS Code | 045007007 |
