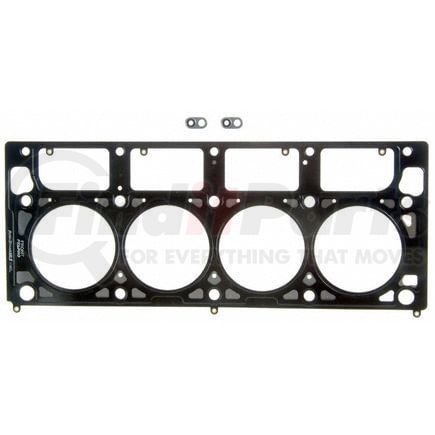

(888) 312-8812 Login SignupFEL-PRO 1160 L Engine Cylinder Head Gasket
$185.61
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FEL-PRO 1160 L Part Description
Manufacturer
Product Description
Engine Cylinder Head Gasket
Features & Benefits
- Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
- The latest development in Fel-Pro Performance head gasket technology is the PermaTorqueMLS (multi-layer steel) series.
- Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.
- Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron
- Not intended for use in emission controlled vehicles.
FEL-PRO 1160 L Specifications
Product Attributes
| Material | PermaTorqueMLS multi-layer steel |
| Thickness | 0.053 IN |
| Grade Type | Performance |
| Cylinder Bore Diameter | 3.945 IN |
| Gasket Sealant Included | No |
| Application Notes | L.H. - Suitable for marine applications - Superseded by 1160 L-053 |
| Bore Size (in.) | 3.945 IN |
| Combustion Chamber Volume (cc) | 10.600 |
| Combustion Seal Design | MLS bore bead |
| Engine Displacement | (4.8L) 293, (5.3L) 325 (Truck Block Based), (5.7L) 346, (5.7L) 383 Stroker, (6.0L) 364, (6.0L) 369 Stroker, (6.0L) 402 Stroker, (6.2L) 378, (7.0L) 427, Aftermarket Performance Block |
| Engine Family | Chevrolet V8 LS Small Block |
| Mfg. | GM Performance |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8484100000 |
| Harmonized Tariff Code (Schedule B) | 8484100000 |
| Harmonized Tariff Code (HTS) | 8484100000 |
| UPC | 00614046730342 |
FEL-PRO 1160 L Cross References
| Brand | Part Number |
|---|---|
| MAHLE | 54441, 54442 |
| VICTOR REINZ GASKETS | 61-10951-00 |
| Victor Reinz | 611095100 |
