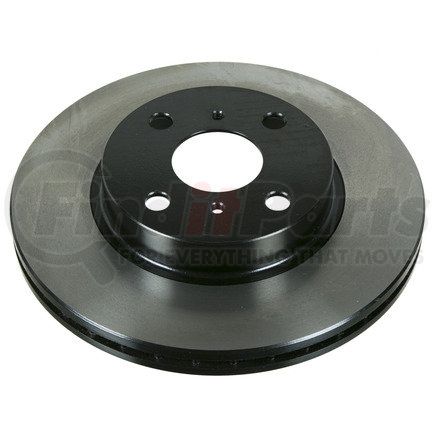

(888) 312-8812 Login SignupWAGNER BD125326E Wagner Brake BD125326E Disc Brake Rotor
Tap to view 2 more
MSRP: $47.74
$3749
Save $10.25
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WAGNER BD125326E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
1998-2002 Chevrolet Prizm (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, 4 Stud Wheel, with 255 (mm) Diameter Rotor); 1993-1997 Geo Prizm (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, 4 Stud Wheel, with 255 (mm) Diameter Rotor); 1993-2002 Toyota Corolla (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, 4 Stud Wheel, with 255 (mm) Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125326E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 22.0 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 255.0 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 48.0 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 0.866 IN |
| Outside Diameter | 10.039 IN |
| Height | 1.890 in |
| Stud/Lug Hole Quantity | 4 |
| Overall Height | 1.890 IN |
| Overall Height | 48.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536710776 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125326E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A580, 18A580A, 18A580AC |
| Aimco | 31056 |
| Autospecialty | JBR-741, JBR741 |
| Beck/Arnley | 083-2525, 832525 |
| Bendix | 141869 |
| Bosch | 25010544 |
| Brembo | 25388 |
| CENTRIC | 120.44092 |
| Carquest | 31056 |
| Carquest Wearever | YH141869 |
| Centric Parts | 120.44092, 121.44092, 12044092, 12144092, 120.44092CRY, 320.44092F |
| DuraGo | BR31056, BR31056-01, BR31056-02 |
| Duralast | 31056, 31056DG |
| Dynamic Friction Company | 600-76056, 604-76056 |
| General Motors | 94853004, 94854148 |
| NAPA | 4886354, 86354 |
| NAPA BRAKES | 86354CR, 4886354, 24886354 |
| PowerStop | JBR741, JBR741EVC |
| Pro-Series | C25326, PS31056 |
| RAYBESTOS | 96354R, 96354 |
| Raybestos Brakes | 96354, 96354R, 96354FZN, 96354R2 |
| Toyota | 43512-12550, 4351212550 |
| Universal | 107561 |
| Worldparts Synergy | WS1231056 |
WAGNER BD125326E Fits Vehicles
- Toyota Corolla (1993-2002)
- Geo Prizm (1993-1997)
- Chevrolet Prizm (1998-2002)
