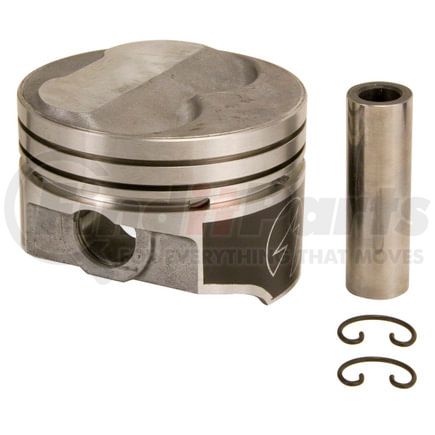

SEALED POWER H618CP Part Description
Manufacturer
Product Description
Engine Piston Set
Application Summary
Performance Engine Performance Performance; 1980-1985 Chevrolet K5 Blazer; 1980-1985 Chevrolet C10; 1980-1985 Chevrolet C10 Suburban; 1980-1985 Chevrolet C20; 1980-1985 Chevrolet C20 Suburban; 1980-1985 Chevrolet C30; 1981 Chevrolet Camaro; 1985 Chevrolet Caprice; 1981-1985 Chevrolet Corvette; 1980-1985 Chevrolet G10; 1980-1985 Chevrolet G20; 1980-1985 Chevrolet G30; 1981-1985 Chevrolet Impala; 1980-1985 Chevrolet K10; 1980-1985 Chevrolet K10 Suburban; 1980-1985 Chevrolet K20; 1980-1985 Chevrolet K20 Suburban; 1980-1985 Chevrolet K30; 1981 Chevrolet Malibu; 1980-1985 Chevrolet P20; 1980-1985 Chevrolet P30; 1980-1985 GMC C1500; 1980-1985 GMC C1500 Suburban; 1980-1985 GMC C2500; 1980-1985 GMC C2500 Suburban; 1980-1985 GMC C3500; 1980-1985 GMC K1500; 1980-1985 GMC K1500 Suburban; 1980-1985 GMC K2500; 1980-1985 GMC K2500 Suburban; 1980-1985 GMC K3500; 1980-1985 GMC G1500; 1980-1985 GMC G2500; 1980-1985 GMC G3500; 1980-1985 GMC Jimmy; 1980-1985 GMC P2500; 1980-1985 GMC P3500
Features & Benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
SEALED POWER H618CP Specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.000 IN |
| Piston Material | Hypereutectic |
| Compression Height | 1.560 IN |
| Dome Volume CC | 3.5 |
| Head Illustration | 135 |
| Head Type | .125 dome, 2 reliefs; DUROSHIELD skirt coated piston |
| Lock Ring | Included |
| Minimum Clearance | .0010 |
| Part Description | Engine Piston |
| Pin Diameter (Inch) | 0.927 |
| Pin Type | F |
| Pin Weight Gram | 159 |
| Standard Size | Standard |
| Weight W Pin Gram | 740 |
| Weight w/o Pin Gram | 581 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046228467 |
SEALED POWER H618CP Fits Vehicles
- GMC P3500 (1980-1985)
- GMC P2500 (1980-1985)
- GMC K3500 (1980-1985)
- GMC K2500 Suburban (1980-1985)
- GMC K2500 (1980-1985)
- GMC K1500 Suburban (1980-1985)
- GMC K1500 (1980-1985)
- GMC Jimmy (1980-1985)
- GMC G3500 (1980-1985)
- GMC G2500 (1980-1985)
- GMC G1500 (1980-1985)
- GMC C3500 (1980-1985)
- GMC C2500 Suburban (1980-1985)
- GMC C2500 (1980-1985)
- GMC C1500 (1980-1985)
- GMC C1500 Suburban (1980-1985)
- Chevrolet P20 (1980-1985)
- Chevrolet P30 (1980-1985)
- Chevrolet Malibu (1981)
- Chevrolet K30 (1980-1985)
- Chevrolet K20 Suburban (1980-1985)
- Chevrolet K20 (1980-1985)
- Chevrolet K10 Suburban (1980-1985)
- Chevrolet K10 (1980-1985)
- Chevrolet Impala (1981-1985)
- Chevrolet G30 (1980-1985)
- Chevrolet G20 (1980-1985)
- Chevrolet G10 (1980-1985)
- Chevrolet Corvette (1981-1982, 1984-1985)
- Chevrolet Caprice (1985)
- Chevrolet Camaro (1981)
- Chevrolet C30 (1980-1985)
- Chevrolet C20 Suburban (1980-1985)
- Chevrolet C20 (1980-1985)
- Chevrolet C10 Suburban (1980-1985)
- Chevrolet C10 (1980, 1982-1985)
- Chevrolet K5 Blazer (1980-1985)
SEALED POWER H618CP Manufacturer Information
Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
