(888) 312-8812 Login SignupSEALED POWER H547CP30 Sealed Power H547CP 30 Engine Piston Set
$16596
Package Price for 4 Units
@ $41.49 per unit
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
SEALED POWER H547CP30 Part Description
Manufacturer
Product Description

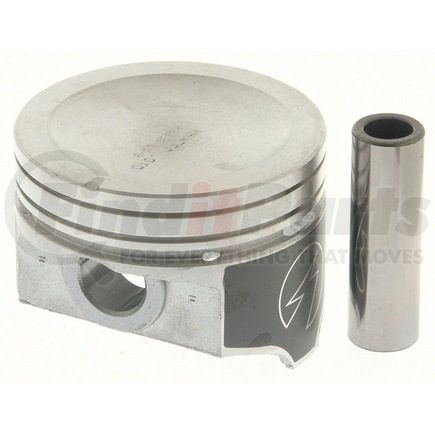

Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
SEALED POWER H547CP30 Specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0625 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9275 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.0000 IN |
| Piston Material | Hypereutectic |
| Compression Height | 1.560 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .165 deep x 3.120 dia. w/shallow oil ring groove for low tension oil ring - 9.0:1 C.R.; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Bore Diameter | 101.6 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.559 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046227637 |
SEALED POWER H547CP30 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | H547CP 30, H3121.030 |
| Badger | P450H-030, P450H030 |
| Clevite | 9H3121.030, 9H3121030 |
| Ertel | 1226P30 |
| Silvolite | H3121030 |
SEALED POWER H547CP30 Fits Vehicles
- Pontiac Sunbird (1979-1980)
- Pontiac Phoenix (1980-1984)
- Pontiac Grand Am (1987-1991)
- Pontiac Fiero (1984-1988)
- Pontiac 6000 (1982-1991)
- Oldsmobile Starfire (1979-1980)
- Oldsmobile Omega (1980-1984)
- Oldsmobile Cutlass Cruiser (1987-1992)
- Oldsmobile Cutlass Ciera (1982-1992)
- Oldsmobile Cutlass Calais (1988-1991)
- Oldsmobile Calais (1987)
- GMC Safari (1985-1990)
- GMC Sonoma (1991-1993)
- GMC S15 (1985-1990)
- GMC S15 Jimmy (1985-1988)
- Chevrolet S10 (1985-1993)
- American Motors Spirit (1980-1982)
- American Motors Eagle (1981-1983)
- American Motors Concord (1980-1982)
- Jeep DJ5 (1980-1983)
- Chevrolet S10 Blazer (1985-1988)
- Chevrolet Monza (1979-1980)
- Chevrolet Lumina (1990-1992)
- Chevrolet LLV (1987-1993)
- Chevrolet Citation II (1984-1985)
- Chevrolet Citation (1980-1983)
- Chevrolet Celebrity (1982-1990)
- Chevrolet Astro (1985-1990)
- Buick Somerset (1987)
- Buick Skylark (1980-1985, 1987-1991)
- Buick Century (1982-1992)
- Jeep Scrambler (1981-1983)
- Jeep CJ7 (1980-1983)
- Jeep CJ5 (1980-1983)
