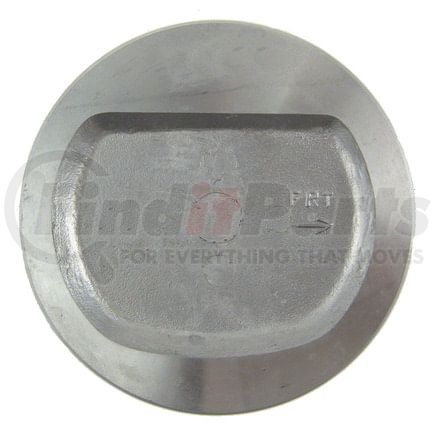

SEALED POWER W525AP - Sealed Power W525AP Engine Piston
- Part Number
- W525AP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power W525AP Engine Piston
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Engine Piston
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
Oversized | No |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Piston Pin Outside Diameter | 0.931 IN |
Piston Head Type | Recessed |
Assembly Lubricant Included | No |
Cylinder Bore Diameter | 3.8750 IN |
Piston Material | Cast Aluminum |
9607 | 1.580 IN |
Dome Volume CC | Negative 014.0 |
Head Illustration | 12 |
Head Type | Recessed Head .116 deep - 9.2:1 C.R. |
Minimum Clearance | 0.001 @ 2.420 from top of head |
Part Description | Engine Piston |
Pin Offset (Inch) | 0.06 |
Pin Offset (MM) | 1.524 |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (Schedule B) | 8409915085 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00614046946170 |
Part Interchanges
Fits Vehicles
- American Motors Eagle (1983-1984)
- Jeep Wrangler (1987-1995)
- Jeep Wagoneer (1984-1987)
- Jeep Scrambler (1983-1985)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-1995)
- Jeep CJ7 (1983-1986)
- Eagle Premier (1988-1989)
