(888) 312-8812 Login SignupSEALED POWER 657P30 Sealed Power 657P 30 Engine Piston Set
$35992
Package Price for 8 Units
@ $44.99 per unit
Limited availability at this price!
In Stock
Get as soon as Wednesday, Sep 30

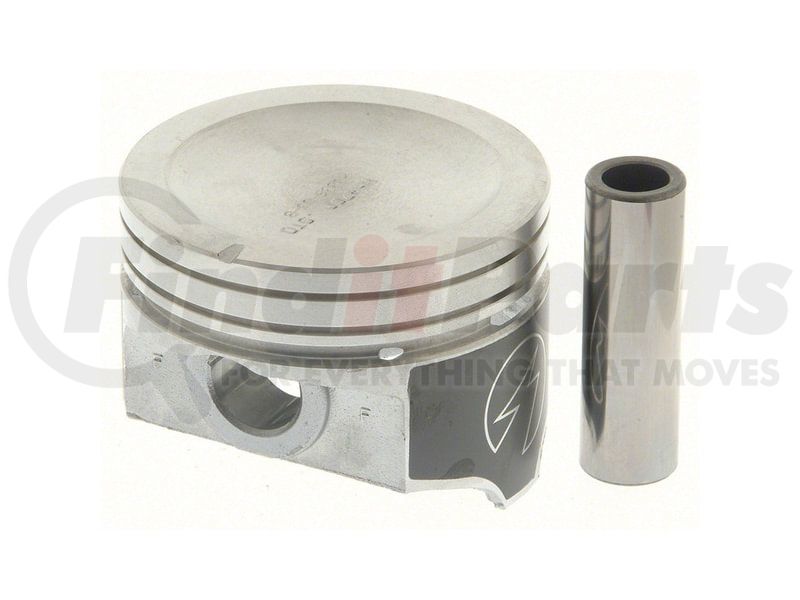

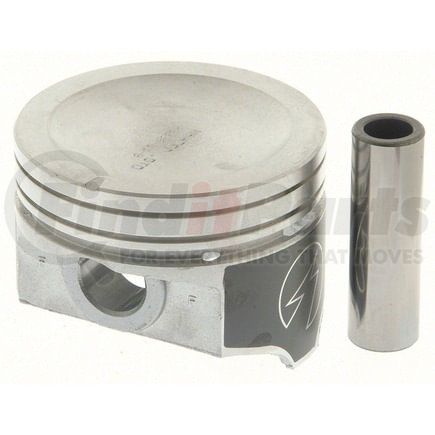

SEALED POWER 657P30 Part Description
Manufacturer
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
SEALED POWER 657P30 Specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9397 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8000 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.800 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .245 deep x 3.050 dia. |
| Minimum Clearance | 0.0015 @ bottom of skirt |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Bore Diameter | 96.5 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.868 MM |
| Grade Type | Premium |
| Piston Head Type | Recessed |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956684717 |
| VMRS Code | 045002001 |
SEALED POWER 657P30 Cross References
| Brand | Part Number |
|---|---|
| Badger | P422A-030, P422A030 |
| Clevite | TC1949.030, 9-1746.030, 91746030, TC1949030 |
| Enginetech | P1504(8)030 |
| Ertel | 1067P30 |
| MAHLE | 224-1949.030 |
| N/A | 1746.030, Z9329G 030 |
| Silvolite | 1746030 |
| Zollner | Z9329G030 |
SEALED POWER 657P30 Fits Vehicles
- Pontiac Ventura (1975-1976)
- Pontiac LeMans (1975)
- Pontiac Grand LeMans (1975)
- Pontiac Grand Am (1975)
- Pontiac Catalina (1978-1980)
- Pontiac Bonneville (1978-1980)
- Oldsmobile Omega (1975-1976)
- Buick GS (1972)
- Buick Centurion (1973)
- Pontiac Laurentian (1978-1980)
- Buick Sportwagon (1972)
- Pontiac Parisienne (1980)
- Jeep Wagoneer (1968-1971)
- Jeep J-3800 (1969-1971)
- Jeep J-3700 (1969-1970)
- Jeep J-3600 (1969-1970)
- Jeep J-3500 (1969-1970)
- Jeep J-2700 (1969-1970)
- Jeep J-2600 (1969-1971)
- Jeep J-2500 (1969-1971)
- Jeep J-100 (1968-1971)
- Buick Skylark (1972, 1975-1976)
- Buick Riviera (1977-1978)
- Buick Regal (1973-1977)
- Buick LeSabre (1972-1980)
- Buick Estate Wagon (1973, 1978-1980)
- Buick Electra (1977-1980)
- Buick Century (1973-1977)
- Buick Apollo (1973-1975)
