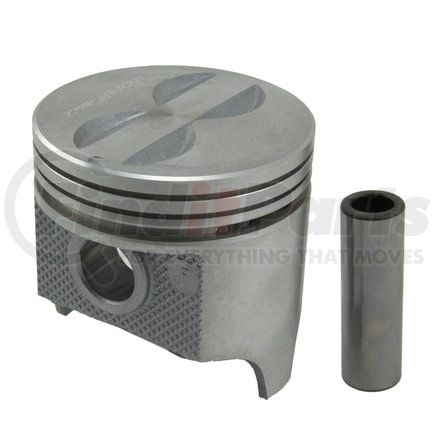

Sealed Power 235NP - Sealed Power 235NP Engine Piston Set
- Part Number
- 235NP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 235NP Engine Piston Set
details
$28792
Package Price for 8 Units
@ $35.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9278 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8750 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.780 IN |
| Head Illustration | 189 |
| Head Type | Flat Head w/4 valve reliefs |
| Minimum Clearance | 0.001 @ 2.570 from top of head |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 98.4 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.566 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046897205 |
Part Interchanges
- American Motors 1564473
- American Motors 3859167
- Badger P309
- Badger P309-STD
- General Motors 3739886
- General Motors 3747509
- General Motors 3758602
- General Motors 3758663
- General Motors 3791692
- General Motors 3792524
- General Motors 3792534
- General Motors 3840019
- General Motors 3840020
- General Motors 3840148
- General Motors 3859167
- General Motors 3859169
- General Motors 3860407
- General Motors 3734627
- TRW Steering and Suspension Parts L3018F
- Clevite 91412
- Clevite TC1544
- Enginetech P1537
- Ertel 373P
- ITM Engine Components RP2246
- Silvolite 1412
- Mcquay-Norris P620AX
- Mcquay-Norris P704AX
- Mcquay-Norris P830AX
- Checker 08200
- Checker 08201
- Zollner Z8337
- Z8337 STD
- Zollner Z8337A
- Z8337A STD
- Z8337B 060
- Z8337B STD
- Zollner 8009
- Zollner 8011A
- Dana Commercial Vehicle Service Parts 1544P
- Dana Commercial Vehicle Service Parts 224-1544
- Dana Commercial Vehicle Service Parts TC1544
- Dana Commercial Vehicle Service Parts TC1544A
- Dana Commercial Vehicle Service Parts TC1544B
- Badger P309STD
- Sealed Power 8412P
- Zollner Z8337ASTD
- Zollner Z8337B060
- Zollner Z8337BSTD
- Zollner Z8337STD
- Dana Commercial Vehicle Service Parts 2241544
Fits Vehicles
- Chevrolet Two-Ten Series (1957)
- Chevrolet P30 Series (1961-1962)
- Chevrolet P20 Series (1961-1962)
- Chevrolet One-Fifty Series (1957)
- Chevrolet Malibu (1964-1967)
- Chevrolet G20 Van (1967)
- Chevrolet El Camino (1959-1960, 1964-1967)
- Chevrolet Corvette (1957-1961)
- Chevrolet Chevy II (1963-1967)
- Chevrolet Chevelle (1964-1967)
- Chevrolet Caprice (1966-1967)
- Chevrolet Biscayne (1958-1967)
- Chevrolet Bel Air (1957-1967)
- Chevrolet C60 (1960-1967)
- Chevrolet C50 (1960-1967)
- GMC C25/C2500 Suburban (1967)
- GMC C15/C1500 Suburban (1967)
- GMC K25/K2500 Suburban (1967)
- GMC K15/K1500 Suburban (1967)
- Chevrolet K20 Suburban (1967)
- Chevrolet K10 Suburban (1967)
- Chevrolet C20 Suburban (1967)
- Chevrolet C10 Suburban (1967)
- Studebaker Cruiser (1965-1966)
- Studebaker Commander (1965-1966)
- Pontiac Beaumont (1964-1967)
- Pontiac Acadian (1964-1967)
- Chevrolet P10 Series (1961-1962)
- GMC Truck (1960)
- GMC 3500 (1960-1966)
- GMC 3000 (1960-1966)
- Chevrolet K20 Pickup (1960-1967)
- Chevrolet K10 Pickup (1960-1967)
- Chevrolet C40 (1960-1962)
- Chevrolet C30 Pickup (1960-1967)
- Chevrolet C20 Pickup (1960-1967)
- Chevrolet C10 Pickup (1960-1967)
- Pontiac Parisienne (1959-1967)
- Chevrolet Parkwood (1959-1961)
- Chevrolet Kingswood (1959-1961)
- Chevrolet 3G (1959)
- Chevrolet 3F (1959)
- Chevrolet 3E (1959)
- Chevrolet 3D (1959)
- Chevrolet 3C (1959)
- Chevrolet 3B (1959)
- Pontiac Strato-Chief (1958-1967)
- Chevrolet Yeoman (1958)
- Chevrolet Impala (1958-1967)
- Pontiac Pathfinder (1957-1958)
- Pontiac Laurentian (1957-1967)
- Chevrolet Truck (1957-1960)
- Chevrolet Sedan Delivery (1957-1958)
- Chevrolet Nomad (1957-1961)
- Chevrolet Del Ray (1957-1958)
- Chevrolet Suburban (1960-1966)
- Chevrolet K20 Panel (1967)
- Chevrolet Brookwood (1959-1961)
- Checker Marathon (1967)
- Studebaker Wagonaire (1966)
- Studebaker Daytona (1965-1966)
- GMC Suburban (1960-1965)
- GMC P35/P3500 Van (1967)
- GMC P25/P2500 Van (1967)
- GMC P15/P1500 Van (1967)
- GMC K25/K2500 Pickup (1967)
- GMC K15/K1500 Pickup (1967)
- GMC G25/G2500 Van (1967)
- GMC G15/G1500 Van (1967)
- GMC C35/C3500 Pickup (1967)
- GMC C25/C2500 Pickup (1967)
- GMC C15/C1500 Pickup (1967)
- GMC 2500 Series (1960-1963)
- GMC 1500 Series (1960-1963)
- GMC 1000 Series (1960-1963)
