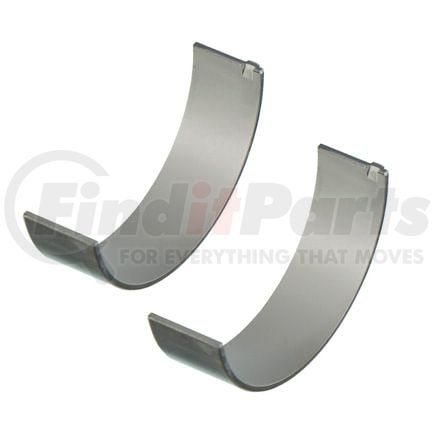

Name: Sealed Power 5020P.25MM Sealed Power 5020P .25MM Engine Connecting Rod Bearing
SKU: 5020p25mm
Price: 30.99 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Connecting Rod Bearing

Features & Benefits

Steel-backed bronze alloy lining with overplate
Popular for fatigue resistance & strength
Provides conformability required for older apps
Our standard material is comparable to competitors performance bearing
Note - This material offers less resistance to wear & corrosion than other materials.
Utilizes ISO & QS certified manufacturing

Product Attributes

Design Feature 1	Undersize MM .25
Housing Bore Max (inch)	2.8764 IN
Housing Bore Max (mm)	73.0610 MM
Housing Bore Min (inch)	2.8755 IN
Housing Bore Min (mm)	73.0380 MM
Oil Clearance Max (inch)	0.0035 IN
Oil Clearance Max (mm)	0.0890 MM
Oil Clearance Min (inch)	0.0006 IN
Oil Clearance Min (mm)	0.0150 MM
Overall Length Max (inch)	0.8310 IN
Overall Length Max (mm)	21.1100 MM
Part Description	Engine Connecting Rod Bearing
Standard Shaft Max (inch)	2.7170 IN
Standard Shaft Max (mm)	69.0120 MM
Standard Shaft Min (inch)	2.7165 IN
Standard Shaft Min (mm)	68.9990 MM
Wall Thickness Max (inch)	0.0790 IN
Wall Thickness Max (mm)	2.0070 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8483300022
Harmonized Tariff Code (Schedule B)	8483308090
Harmonized Tariff Code (HTS)	8483308090
UPC	00614046852068
