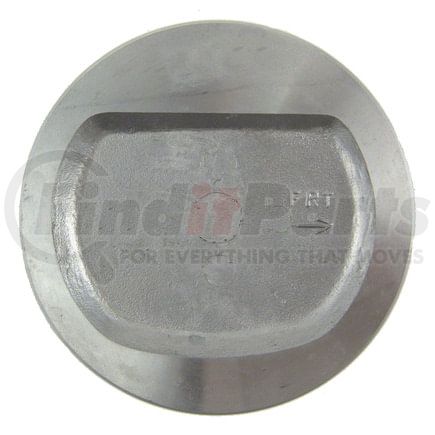

SEALED POWER 599P Sealed Power 599P Engine Piston Set

★★★★★ (0)

$236.94

Package Price for 6 Units
@ $39.49 per unit

Limited availability at this price!

1 Day Lead Time

Get as soon as Wednesday, Dec 2
30-day Return Policy On eligible items Details
Does not qualify towards free shipping promotion details
This item will ship about 1 day after the date of purchase.

SEALED POWER 599P Part Description

Manufacturer

SEALED POWER

Product Description

Engine Piston Set

Features & Benefits

  • Cast with FM413 Eutectic aluminum with 12% silicon for strength and durability
  • Performance/dependability of OE pistons - high quality aluminum casting & machining provide reliability, durability & long life of part
  • State-of-the-art manufacturing
  • Exacting tolerances
  • Meets or exceeds OEM specifications
  • Up-tilt ring grooves improve piston to ring sealing & providing great blow-by control

SEALED POWER 599P Specifications

Product Attributes

OversizedNo
Top Compression Ring Thickness0.0781 IN
Second Compression Ring Thickness0.0781 IN
Oil Ring Thickness0.1875 IN
Piston Pin Outside Diameter0.9275 IN
Assembly Lubricant IncludedNo
Bore Diameter3.8750 IN
Piston MaterialCast Aluminum
Compression Height1.640 IN
Head Illustration12
Head TypeRecessed Head .115 deep.
Minimum Clearance0.001 @ 1.940 from top of head
Part DescriptionEngine Piston
Pin Offset (Inch)0.06
Pin Offset (MM)1.524
Grade TypePremium
Piston Pin Outside Diameter23.559 MM
Grade TypePremium
Piston Head TypeRecessed
Prop 65 Label (Yes/No)No

Additional Information

Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8409910010
Harmonized Tariff Code (Schedule B)8409915085
Harmonized Tariff Code (HTS)8409915085
UPC00019826071217
VMRS Code045002001

SEALED POWER 599P Cross References

BrandPart Number
EnginetechP1520(6)STD
MAHLE224-1658

SEALED POWER 599P Fits Vehicles

  • Buick Apollo (1973-1975)
  • Buick Skylark (1968-1971)
  • Buick Special (1968-1969)
  • Checker A11 (1970-1974)
  • Checker A11E (1970-1974)
  • Checker Deluxe (1969-1970)
  • Checker Marathon (1969-1975)
  • Checker Taxicab (1969-1974)
  • Chevrolet Bel Air (1966-1973)
  • Chevrolet Biscayne (1966-1972)
  • Chevrolet Brookwood (1969-1972)
  • Chevrolet Camaro (1967-1979)
  • Chevrolet Caprice (1967-1969, 1971-1974, 1977-1979)
  • Chevrolet Chevelle (1967-1973)
  • Chevrolet Chevy II (1967-1968)
  • Chevrolet Estate (1969-1970)
  • Chevrolet Impala (1966-1974, 1977-1979)
  • Chevrolet Malibu (1967, 1973-1977)
  • Chevrolet Nova (1969-1979)
  • Oldsmobile Cutlass (1968-1971, 1975-1976)
  • Oldsmobile Cutlass Supreme (1975-1976)
  • Oldsmobile F85 (1966-1971)
  • Oldsmobile Omega (1973-1976)
  • Pontiac Acadian (1967-1971)
  • Pontiac Beaumont (1967-1969)
  • Pontiac Catalina (1977-1979)
  • Pontiac Firebird (1968-1976)
  • Pontiac Grand LeMans (1975-1977)
  • Pontiac Laurentian (1966-1969, 1977-1979)
  • Pontiac LeMans (1968-1977)
  • Pontiac Parisienne (1966-1970, 1974, 1977-1979)
  • Pontiac Strato-Chief (1966-1970)
  • Pontiac Tempest (1970)
  • Pontiac Ventura (1971-1976)
