SEALED POWER 698P 30 - Sealed Power 698P 30 Engine Piston Set
- Part Number
- 698P 30
- Manufacturer
- SEALED POWER
- Description
-

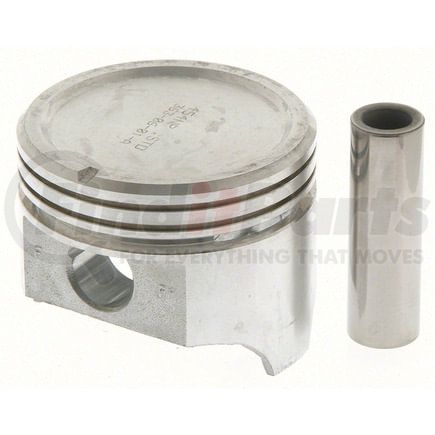

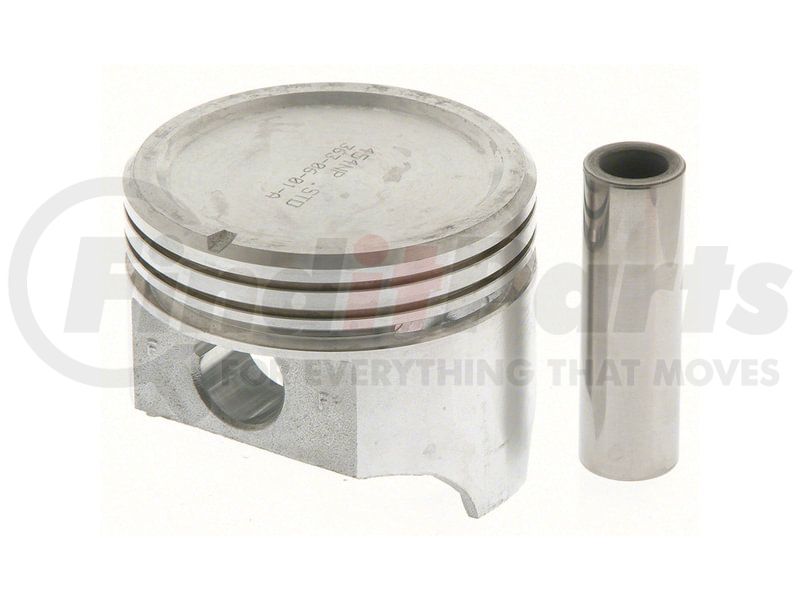

Sealed Power 698P 30 Engine Piston Set
details
$13194
Package Price for 6 Units
@ $21.99 per unit
MSRP: $235.80
Save: $103.86
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
SEALED POWER part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
Oversized | Yes |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Piston Pin Outside Diameter | 0.9275 IN |
Assembly Lubricant Included | No |
Bore Diameter | 3.7360 IN |
Piston Material | Cast Aluminum |
9607 | 1.540 IN |
Head Illustration | 43 |
Head Type | Recessed Head .110 deep x 3.115 dia. - 8.5:1 C.R. |
Minimum Clearance | 0.001 @ 2.200 from top of head |
Oversized Amount | 0.030 IN |
Part Description | Engine Piston |
Pin Offset (Inch) | 0.06 |
Pin Offset (MM) | 1.524 |
Additional Information
Country of Origin (Primary) | MX |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (Schedule B) | 8409915085 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00614046232648 |
Part Interchanges
Fits Vehicles
- Pontiac LeMans (1980-1981)
- Pontiac Grand LeMans (1980-1981)
- Pontiac Catalina (1980)
- GMC Caballero (1980-1984)
- Pontiac Laurentian (1980)
- Pontiac Parisienne (1980)
- Chevrolet Monte Carlo (1980-1984)
- Chevrolet Malibu (1980-1983)
- Chevrolet Impala (1980-1984)
- Chevrolet El Camino (1980-1984)
- Chevrolet Caprice (1980-1984)
- Chevrolet Camaro (1980-1981)
