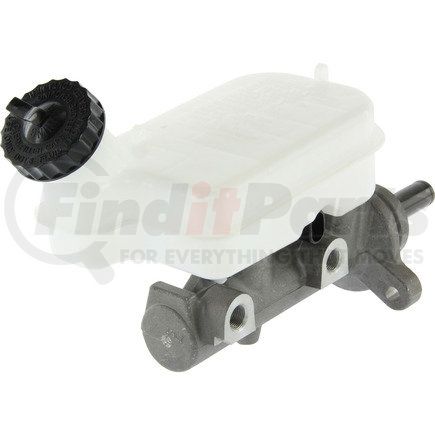

Centric 131.67031 - C-Tek Standard Brake Master Cylinder
$11249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
Product Attributes
| Publication Bore [cntrc] | 1" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M12-1.00 bbl |
| Weight [cntrc] Lbs | 2.25 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Product Grade [cntrc] | Standard |
| Push Rod: Length / Depth [cntrc] In | 2.52 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M12-1.00 bbl |
| Weight [cntrc] Kgs | 1.02 |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.000 IN |
| Master Cylinder Bore Diameter | 25.400 MM |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 12.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 25.400 MM |
| Bore Size | 1.000 IN |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M12-1.00 |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 25.400 MM |
| Primary Bore Diameter | 1.000 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890961802 |
Fits Vehicles
- Chrysler Pacifica (2004-2006)
- Dodge Grand Caravan (2003-2007)
- Dodge Caravan (2003-2007)
- Chrysler Town & Country (2003-2007)
