Centric 122.04000 - Centric Premium Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

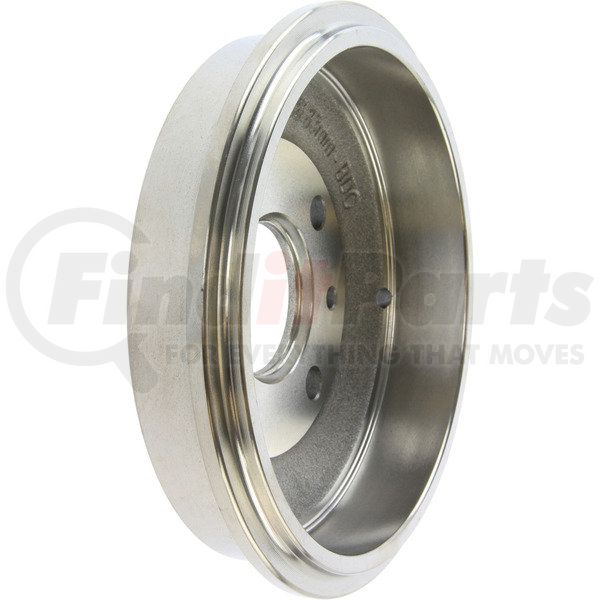

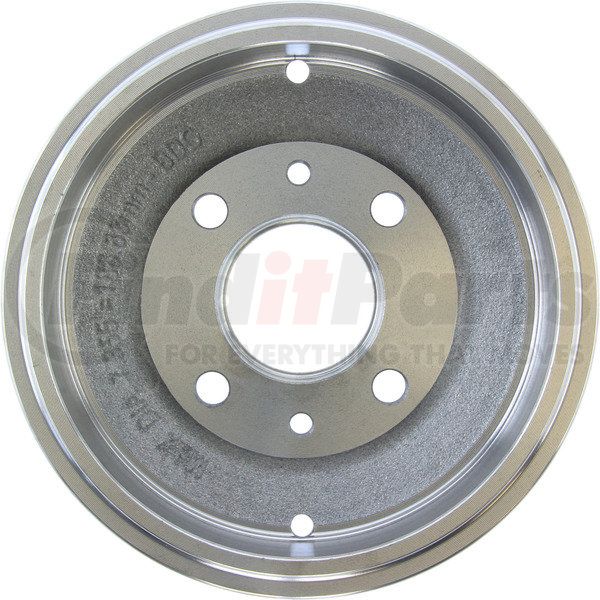

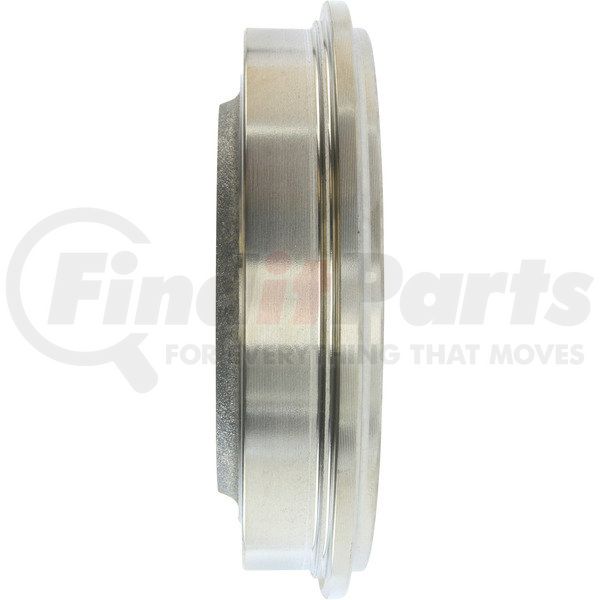

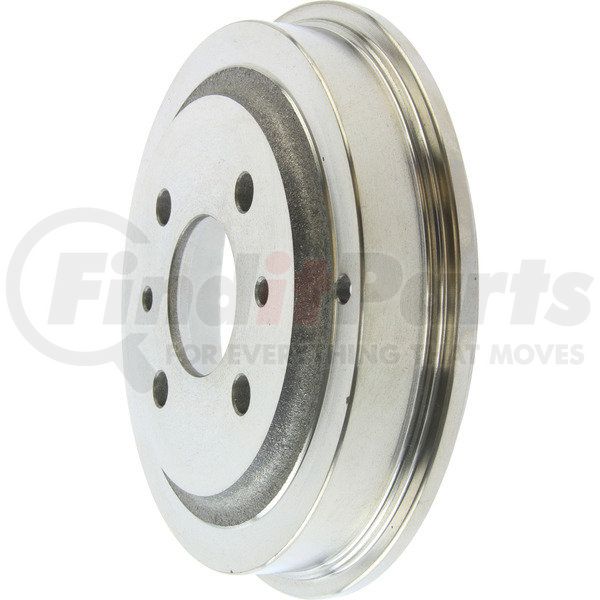

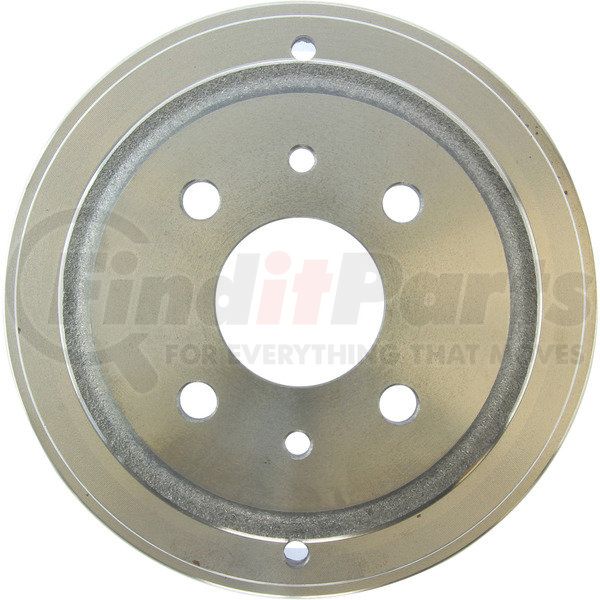

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 3.314 |
| Weight [cntrc] Lbs | 7.290 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 98.000 |
| Bolt Circle Diameter [cntrc] In | 3.858 |
| Hub Hole / Register [cntrc] Mm | 58.000 |
| Hub Hole / Register [cntrc] In | 2.283 |
| Height [cntrc] Mm | 53.000 |
| Height [cntrc] In | 2.087 |
| Friction Surface Width [cntrc] Mm | 35.700 |
| Friction Surface Width [cntrc] In | 1.406 |
| Product Grade [cntrc] | Premium |
| Nominal Drum Diameter | 7.283 IN |
| Nominal Drum Diameter | 185.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Mounting Hole Diameter | 13.000 MM |
| Outer Cooling Fins | No |
| Outside Diameter | 8.642 IN |
| Outside Diameter | 219.500 MM |
| Bolt Hole Quantity | 4 |
| Maximum Brake Diameter (Discard) | 7.323 IN |
| Maximum Brake Diameter (Discard) | 186.000 MM |
Additional Information
| Country of Origin (Primary) | IT |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890031727 |
Part Interchanges
CENTRIC 122.04000 Cross Reference
We have 2 alternatives for the 122.04000 by CENTRIC:
Fits Vehicles
- Fiat 850 (1968-1973)
- Fiat 128 (1971-1976)
