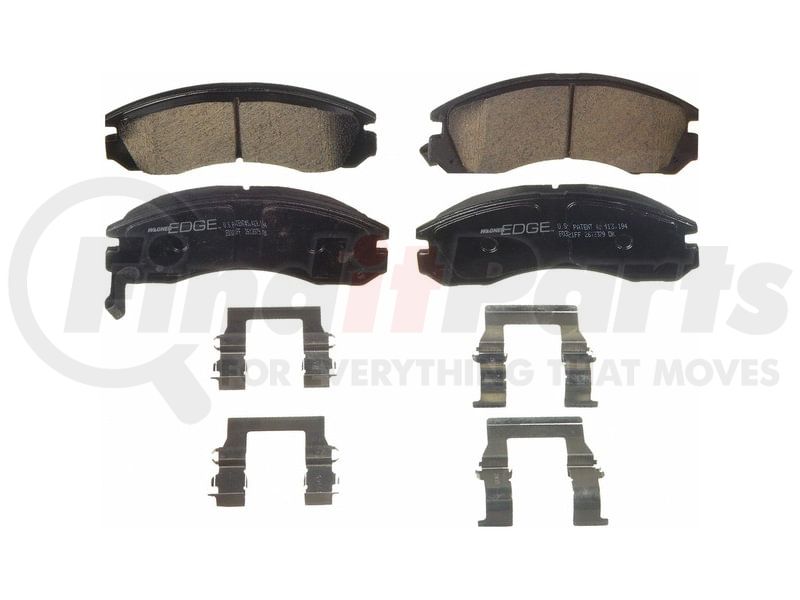

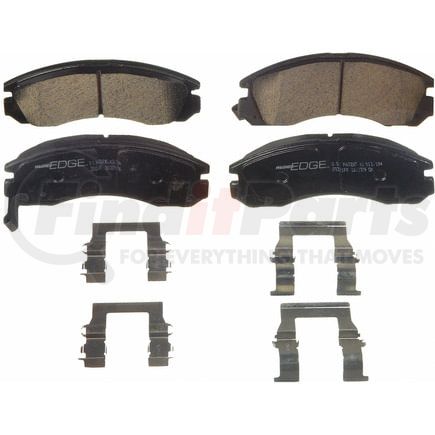

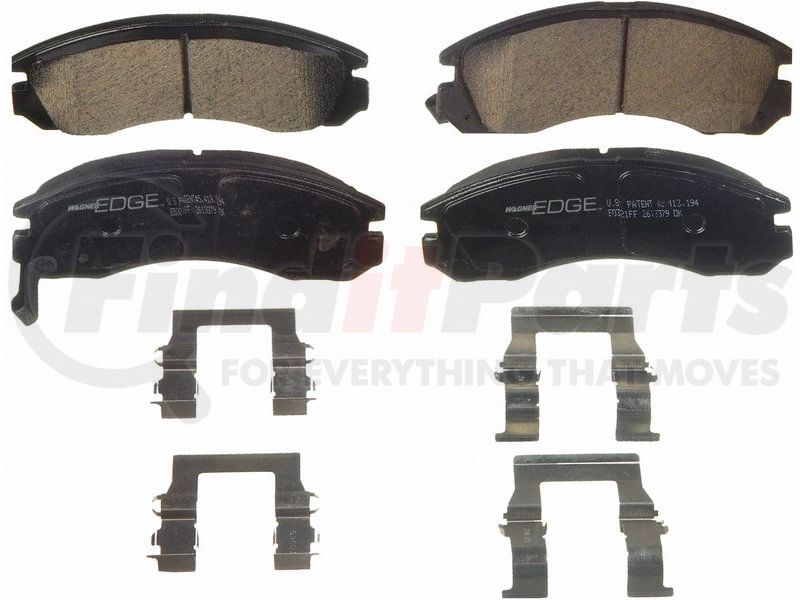

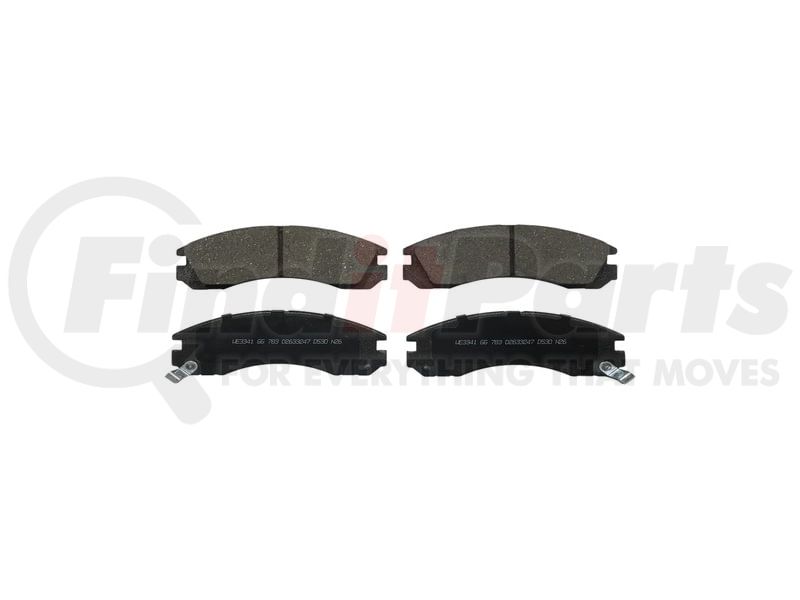

WAGNER EC530 Part Description
Manufacturer
Features & Benefits
- DESIGNED FOR DAILY USE -- Engineered for consistent performance in everyday driving, from commuting to weekend errands
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- QUIET OPERATION -- Noise-reducing three-layer shim helps limit squeal for quieter braking performance
- PAD LIFE MONITORING -- Application-specific brake wear sensor detects pad wear and provides a timely alert to support proactive maintenance and preserve braking performance
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- CORROSION PROTECTION -- Powder-coated backplate helps resist rust and extend product life
- COMPREHENSIVE COVERAGE -- Brake pads available for all vehicle types
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner ES brake pads with Wagner rotors and calipers (sold separately) for optimal performance
EC530
WAGNER EC530 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 7412-D530 |
| Abutment Clips Included | Yes |
| Pad Shims Included | Yes |
| Chamfered Edges | No |
| Slotted | No |
| Inner Pad Friction Material Thickness | 0.618 IN |
| Outer Pad Friction Material Thickness | 0.618 IN |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 7412 |
| Fmsi Steel | D530 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8708305020 |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00017358035257 |
WAGNER EC530 Cross References
| Brand | Part Number |
|---|---|
| Akebono ProACT | ACT530 |
| Auto Extra | AXMD530, AXOD530, AXCD530 |
| BRAKE PRO | BKP530C |
| Bendix | SCD530, PD530, D530, SBC530, RD530 |
| Bosch | BC530, BE530H, BE530 |
| BrakeBest Select Brake Pads | D530, SC530 |
| Carquest | BD530 |
| Carquest Premium Gold | GNAD530 |
| Carquest Professional Platinum Brake Pads | PXD530H |
| Carquest Standard Brake Pads | MKD530, NAD530 |
| Centric Parts | 105.05300, 102.05300, 300.05300, 305.05300, 319.05300, 106.05300, 309.05300, 103.05300, 301.05300, 308.05300 |
| Chrysler | MR129103, MB895250, MR129432, MR389546 |
| Duralast | DG530, MKD530 |
| Dynamic Friction Company | 1310-0530-01, 1551-0530-00, 1551-0530-02, 1115-0530-02, 1901-0530-00, 1551-0530-01, 4000-0530-02, 1311-0530-01, 1311-0530-02, 4000-0530-00, 1115-0530-00, 1310-0530-02, 1310-0530-00, 1115-0530-01, 4000-0530-01 |
| Mitsubishi | MB895090, MB699452, MB858584, MR249060, MZ690172, MR389516, MR129104, 4605A717, MB895091, MR389548, MZ690019, MR569592, MR449544, MR493985 |
| Monroe Shocks & Struts | GX530, CX530, DX530 |
| Morse | MX530 |
| NAPA BRAKES | UP7412, SG7412X, UP7412X, PF7412X, SS7412X |
| Pep Boys | PD530, D530V, PD530C, PGD530M, PGD530C, PS530C |
| PowerStop | Z26530, 16530, Z23530, 275301, 17530N, 17530 |
| RAYBESTOS | ATD530C |
| Raybestos Brakes | MGD530CH, EHT530H, SGD530C, SGD723C |
| Satisfied | MDL530 |
| VORTEX | VXD530C |
| Worldparts Synergy | WSD530CH |
WAGNER EC530 Fits Vehicles
- Mitsubishi Outlander (2005-2006)
- Mitsubishi Montero Sport (1997-2004)
- Mitsubishi Diamante (1992-2004)
- Mitsubishi 3000GT (1991-1999)
- Mitsubishi Eclipse (1993-2000)
- Mitsubishi Galant (1991-1992, 1999-2000)
- Mitsubishi Montero (1992-2000)
- Mitsubishi Lancer (2009-2011)
- Mitsubishi Outlander PHEV (2018-2020)
- Plymouth Laser (1993-1994)
- Eagle Talon (1993-1998)
- Eagle 2000 GTX (1991-1992)
- Dodge Stealth (1991-1996)
