WAGNER BD126059E Part Description
Manufacturer
Product Description

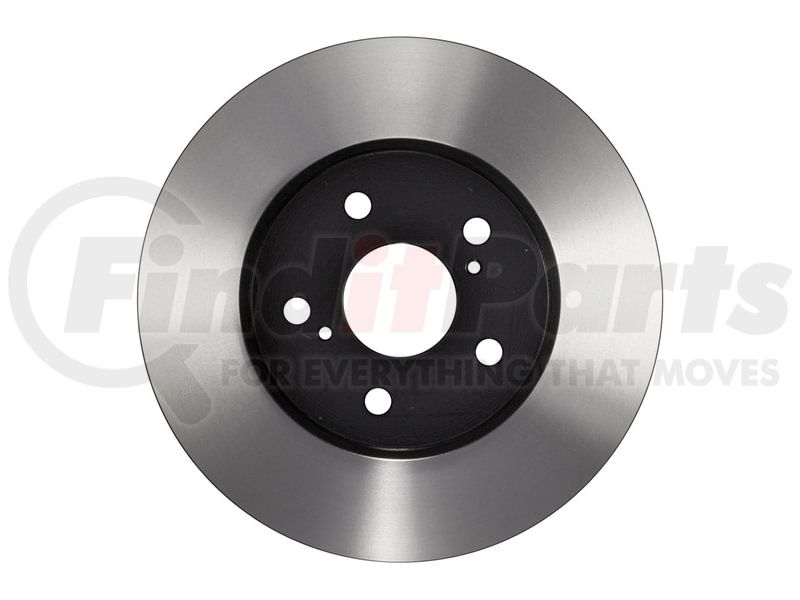

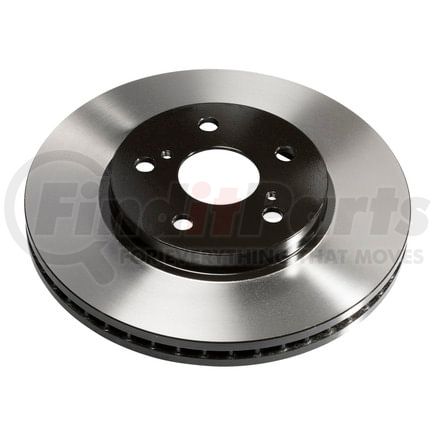

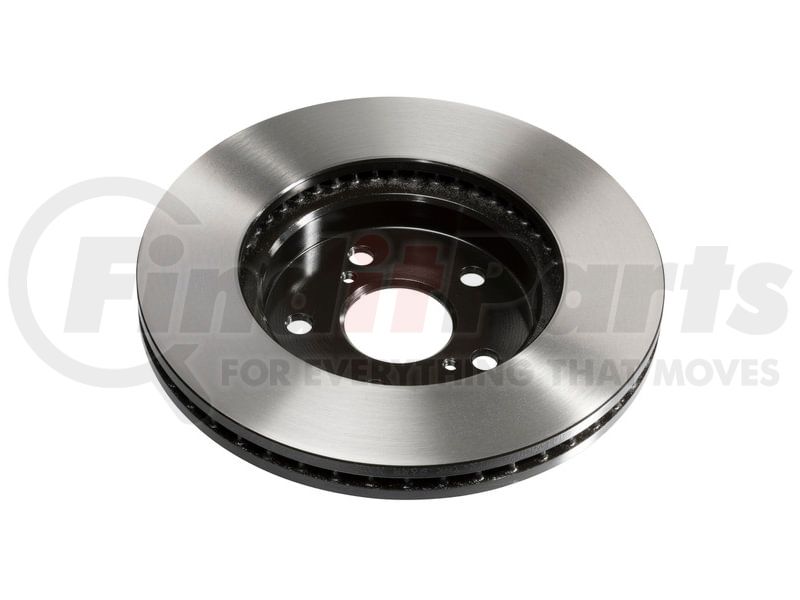

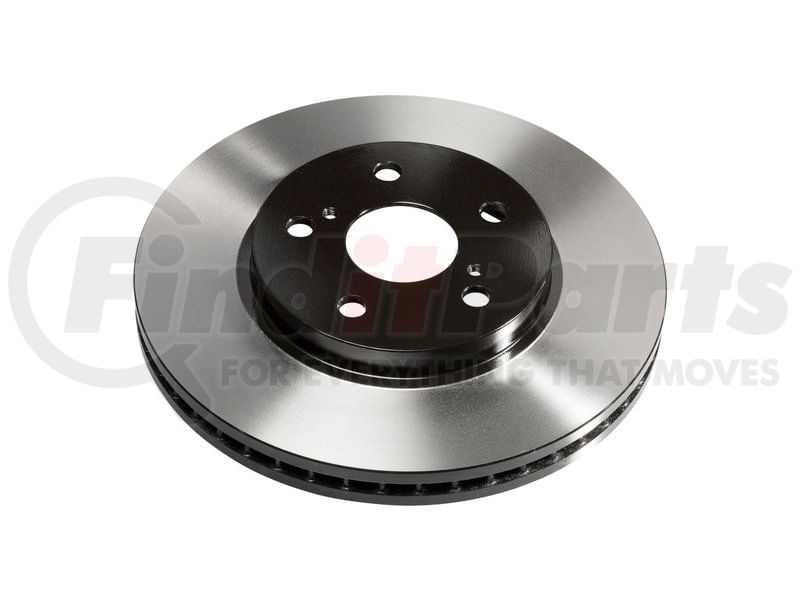

Disc Brake Rotor
Application Summary
2005-2007 Toyota Avalon (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2002-2006 Toyota Camry XLE SE (Front) (Liter: 3.3, 3.0 & Engine(cc): 3300, 2995 & Engine(ci): 202 & Cylinder: 6 & Block: V & Bore(in): 3.62, 3.45 & Bore(mm): 91.95, 87.5 & Stroke(in): 3.27 & Stroke(mm): 83.06, 83.0 / Qualifier: Except Stepped Hat Design, 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, without 15 (in) Wheels); 2004-2010 Toyota Sienna (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2004-2008 Toyota Solara (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126059E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.654 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 1.929 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 28.0 MM |
| Outside Diameter | 296.0 MM |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 1.929 IN |
| Overall Height | 49.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536711216 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126059E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1485, 18A1485A, 18A1485AC |
| Aimco | 31314 |
| Autospecialty | JBR972 |
| Bendix | 145471 |
| Bosch | 50011225 |
| BrakeBest Select Drum/Rotor | 980077RGS |
| Brembo | 25856 |
| CENTRIC | 120.44125 |
| Carquest | 31314 |
| Carquest Platinum Painted Rotors | YH145471P |
| Carquest Platinum Plus Coated Rotors | YH145471C |
| Carquest Wearever | YH145471 |
| Centric Parts | 120.44125, 121.44125, 12044125, 12144125, 120.44125CRY, 320.44125F |
| Duralast | 31266 |
| Lexus | 4351248031, 4351258011 |
| NAPA | 48880077, 880077 |
| NAPA BRAKES | 880077CR, 48880077, 248880077 |
| PowerStop | JBR972, JBR972EVC |
| Pro-Series | PS44627, C26059 |
| RAYBESTOS | 980077, 980077R |
| Raybestos Brakes | 980077, 980077R, 980077FZN, 980077R2 |
| Toyota | 43512-08030, 43512-33100, 4351208040, 4351248031, 4351258010, 4351258011, 4351208030, 4351233100 |
| UQuality Rotors | 2031314 |
| Winhere | UR000937, UR004652 |
| Worldparts Synergy | WS1231314 |
WAGNER BD126059E Fits Vehicles
- Toyota Avalon (2005-2007)
- Toyota Solara (2004-2008)
- Toyota Sienna (2004-2010)
- Toyota Camry (2002-2006)
