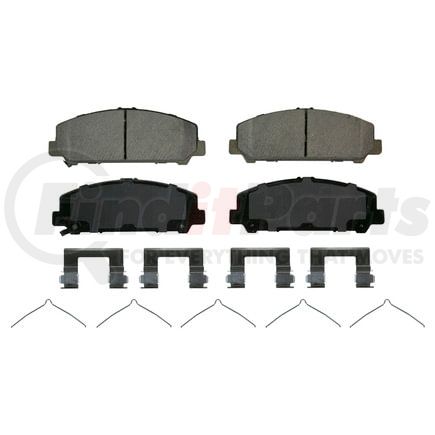

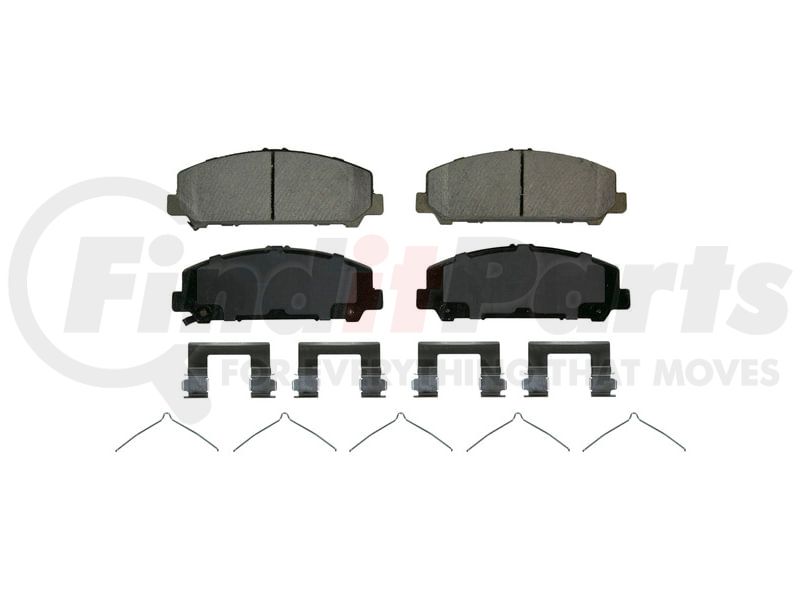

(888) 312-8812 Login SignupWAGNER ZD1509 QuickStop Ceramic Disc Brake Pad Set
MSRP: $125.23
$6899
Save $56.24
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 12
WAGNER ZD1509 Part Description
Manufacturer
Product Description
Disc Brake Pad Set
Features & Benefits
- RESTORES LIKE-NEW BRAKING PERFORMANCE -- OE fit and form design delivers consistent, even braking throughout the life of the brake pad
- REDUCED VIBRATION -- Application-specific design reduces noise-causing vibration
- VEHICLE-SPECIFIC MATERIALS -- Formulated to meet the unique needs of each vehicle application
- HARDWARE INCLUDED -- Premium stainless-steel hardware included in most applications
- COMPREHENSIVE COVERAGE -- Brake pads available for all vehicle types
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- QUIETER OPERATION -- Up to four-layer shim (application specific) helps dampen vibration and reduce squeal for smoother, quieter braking performance
- PAD LIFE MONITORING -- Application-specific brake wear sensor detects pad wear and provides a timely alert to support proactive maintenance and preserve braking performance
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- CORROSION PROTECTION -- Powder-coated backplate helps resist rust and extend product life
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner® Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
Rely on the Wagner® Brake QuickStop® disc brake pad set to restore like-new braking performance to your vehicle.
Wagner® QuickStop® ceramic brake pads are designed, tested and certified to ensure a vehicle's braking system will be restored to original equipment performance.
- Optimal stopping performance
- Application-specific design reduces noise-causing vibration
- 100% OE-post cured for consistent braking throughout the life of the pad
- Includes OE-style lubricant
- Low copper 2021 compliant ceramic formulation
- Install Wagner with total confidence
Part Specifications
BRAKE PADS
| Pad FMSI Number | 8403-D1509 |
| Abutement Hardware Included | Yes |
| Friction Thickness Inner Pad (Inch) | 0.703 |
| Friction Thickness Outer Pad (Inch) | 0.703 |
| Front or Rear Pads | Front |
| OEM Replacement | Yes |
| Package Quantity | 4 |
| Pad Material | Ceramic |
| Shims Included | No |
| Wear Sensors Included | Mechanical |
| Performance | No |
WAGNER ZD1509 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 8403-D1509 |
| Abutment Clips Included | Yes |
| Pad Shims Included | No |
| Chamfered Edges | Yes |
| Slotted | Yes |
| Inner Pad Friction Material Thickness | 0.703 IN |
| Outer Pad Friction Material Thickness | 0.703 IN |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 8403 |
| Fmsi Steel | D1509 |
Additional Information
| MSDS Sheet Number | 5008 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00008536676683 |
| VMRS Code | 013000000 |
| UNSPSC | 25171713 |
WAGNER ZD1509 Cross References
| Brand | Part Number |
|---|---|
| Auto Extra | AXCD1509 |
| BRAKE PRO | BKP1509CH |
| Bendix | SBC1509 |
| Bosch | BE1509, BE1509H, BP1509 |
| BrakeBest Select Brake Pads | D1509, SC1509 |
| CENTRIC | 105.15090 |
| Carquest Premium Gold | GNAD1509 |
| Centric Parts | 301.15090, 103.15090, 105.15090, 106.15090, 300.15090, 305.15090, 308.15090 |
| Datsun/Nissan | D10601LA1A, D10609FE0A |
| Detroit Axle | P1509 |
| Duralast | D1509, DE1509, DG1509 |
| Dynamic Friction Company | 4000-1509-01, 1551-1509-01, 4000-1509-00, 1400-1509-00, 1400-1509-01, 1214-1509-00, 1214-1509-01, 1551-1509-00, 1310-1509-01, 1310-1509-00, 1311-1509-01 |
| MAGMA PRODUCTS | PMD1509C |
| Monroe Shocks & Struts | CX1509, DX1509, FX1509, GX1509, HDX1509 |
| NAPA BRAKES | PF8403X, UP8403X, SS8403X, SG8403X, UP8403AX, SS8403AX, PF8403AX, SG8403AX, AD8403A |
| Pep Boys | PD1509, PS1509C, PD1509C, PGD1509 |
| PowerStop | 161509, 171509, Z231509, Z361509 |
| Promax | PRM21-1509 |
| RAYBESTOS | ATD1509C |
| Raybestos Brakes | SP1509TRH, EHT1509H, MGD1509CH |
| Suzuki | 5521082Z30, 5521082Z32 |
| VORTEX | VXD1509CH |
| Worldparts Synergy | WSD1509CH |
WAGNER ZD1509 Fits Vehicles
- INFINITI QX80 (2014-2020)
- Nissan Titan (2012, 2017-2019)
- Nissan Armada (2012-2015, 2017-2024)
- Nissan TITAN (2011-2015, 2017-2019)
- INFINITI QX56 (2011-2013)
WAGNER ZD1509 Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER ZD1509 Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
