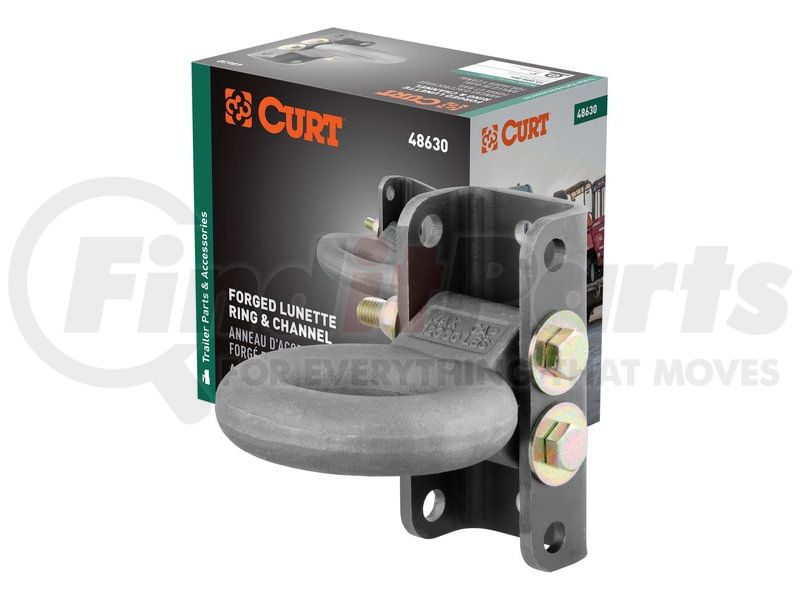

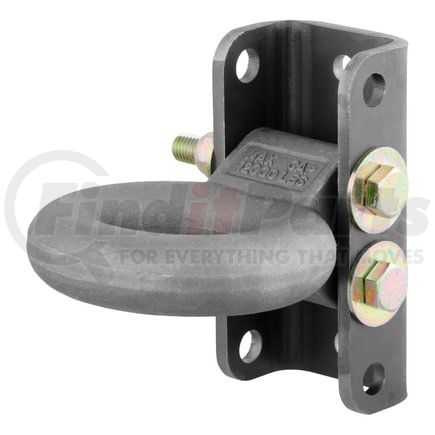

CURT Manufacturing 48630 - Adjustable Lunette Ring (12;000 lbs.; 3in. Eye; 7-1/2in. Channel Height; Package
- Part Number
- 48630
- Manufacturer
- CURT MANUFACTURING
- Description
-
Adjustable Lunette Ring (12;000 lbs.; 3in. Eye; 7-1/2in. Channel Height; Package
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CURT MANUFACTURING part description
Product Description

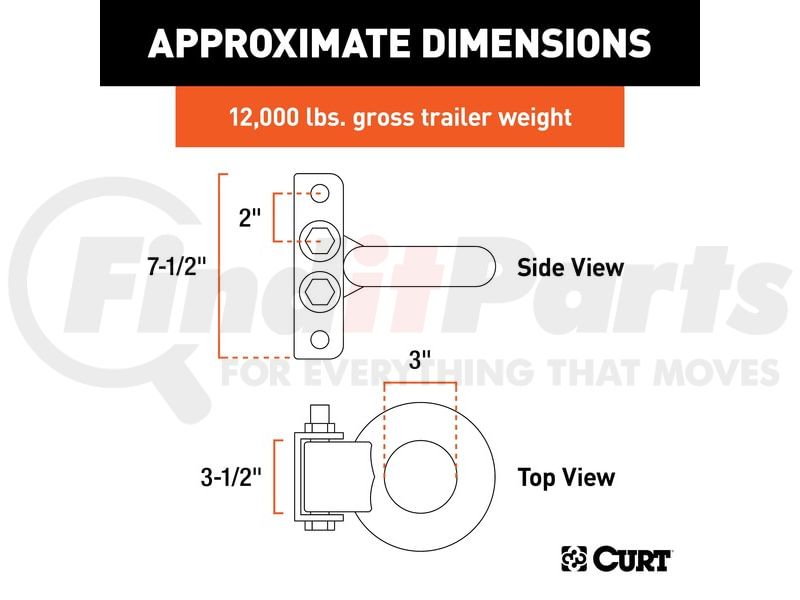

Adjustable Lunette Ring (12;000 lbs.; 3in. Eye; 7-1/2in. Channel Height; Package
Features & Benefits
- 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
- Three-position height adjustment allows for precise trailer leveling
- 2" bolt pattern spread for simple, secure attachment
- 7-1/2" x 3" channel bracket features one-piece, formed steel construction
- Limited lifetime warranty (one-year finish, one-year parts)
- 3 In. I.D. Fits Pintle Combinations Or Clevis Bars
- Three-Position Height Adj. Allows For Precise Trailer Leveling
- 2 In. Bolt Pattern Spread For Simple Secure Attachment
- Constructed From Forged Steel For Superior Strength
- Channel Bracket Features One-Piece Formed Steel Construction
3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
Product Attributes
| Finish | Raw |
| Gross Trailer Weight | 12000 lbs. |
| WARNING CA Proposition 65 | No |
| Box Height In Inches - Xa | 4 |
| Box Length In Inches - Xa | 11 |
| Box Width In Inches - Xa | 9 |
| Class Id | 0 |
| Container Cases Qty - XA | 0 |
| Container Pallet Qty - XA | 0 |
| Container Unit Qty - XA | 0 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 0 |
| Finish - Xa | RAW |
| Gross Trailer Weight (gtw) | 12,000 LB |
| Item Class - Xa | OMF |
| Item Height - Xa | 0.000 |
| Item Length - Xa | 0.000 |
| Item Width - Xa | 0.000 |
| Master Case Height Inches - XA | 0.000 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 0.000 |
| Master Case Qty - XA | 0 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 0.000 |
| Master Case Width Inches - XA | 0.000 |
| Material - Xa | Blank |
| Mount Type Description - Xa | Blank |
| Pallet Case Per - XA | 0 |
| Pallet Case Per Layer - XA | 0 |
| Pallet Cases Per - XA | 0 |
| Pallet Cases Per Layer - XA | 0 |
| Pallet Layer of Cases - XA | 0 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 0.000 |
| Pallet Total Weight Per - XA | 0.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 0.000 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 4.870 |
| Retail Length - Xa | 8.130 |
| Retail Width - Xa | 8.000 |
| Sales Family Code - Xa | ACCES |
| Sales Family Description - Xa | ACCESSORIES |
| Sales Group Description - Xa | PINTLE MOUNT |
| Shipping Weight - Xa | 17.000 |
| Side Application Type Description - Xa | Blank |
| Tariff 301 - Xa | Yes |
| Title | Adjustable Lunette Ring (12,000 lbs., 3" Eye, 7-1/2" Channel Height, Packaged) |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314500635 |
