CURT MANUFACTURING 25328 Part Description
Manufacturer
Product Description

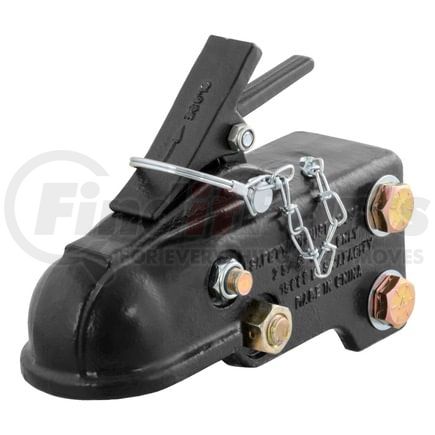

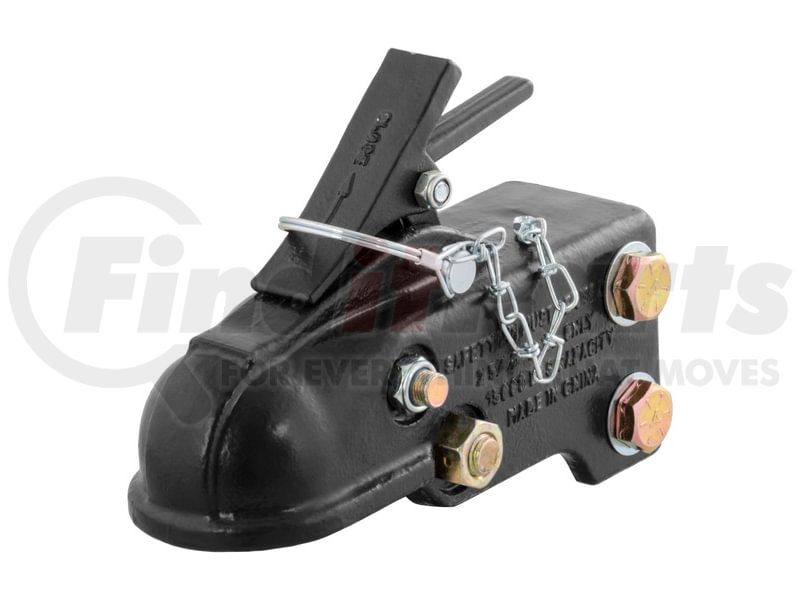

2-5/16in. Channel-Mount Coupler with Easy-Lock (15;000 lbs; Black)

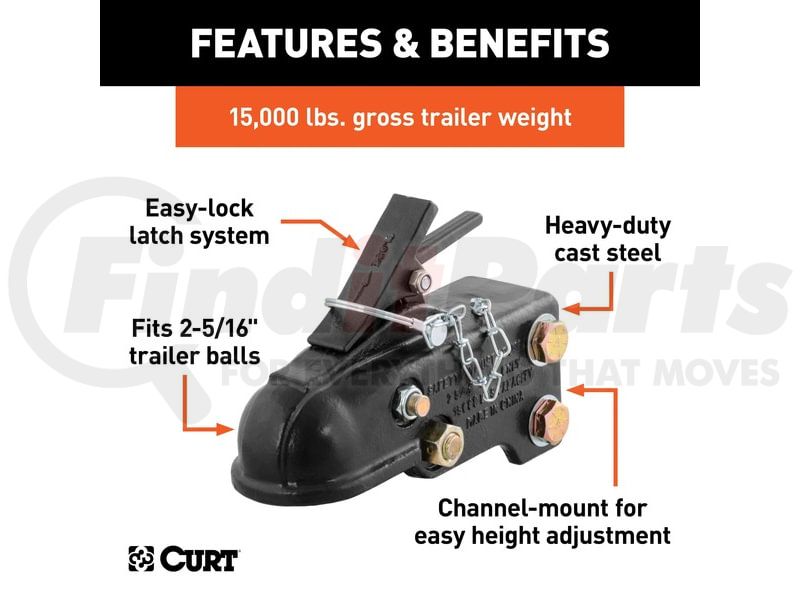

Features & Benefits
- Compatible with CURT channels #48610 and #48650
- Easy-lock latching system with included safety pin for optimum security
- Protected by a durable carbide black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Compatible w/Curt Channels #48610 And #48650

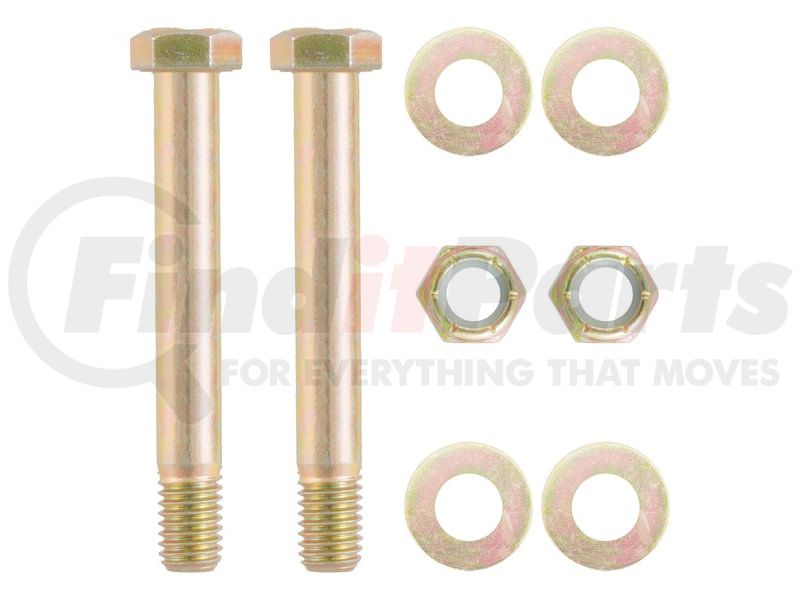

- Secured By A Dual-Bolt Mounting System
- Channel-Mount Allows For Easy Height Adjustment

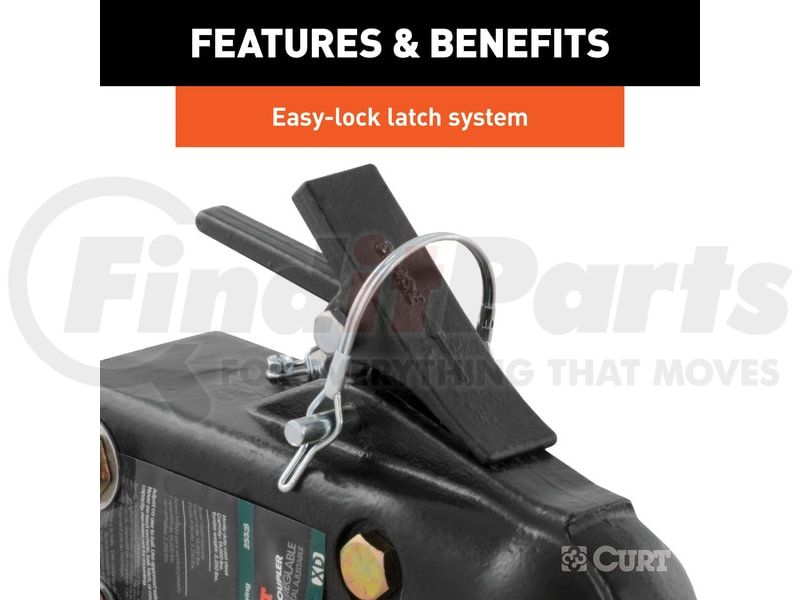

- Easy-Lock Latching System For Optimum Security
- Safety Pin Hole Can Also Accept A Coupler Lock
- Constructed From Heavy-Duty Cast Steel
- Protected By A Durable Gloss Black Powder Coat Finish
- Backed By A Three-Year Limited Warranty

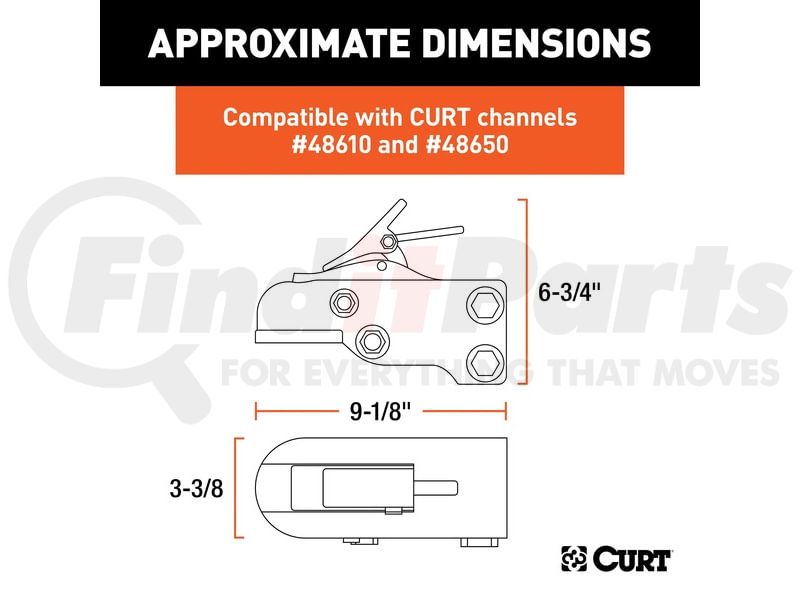

Compatible with CURT channels #48610 and #48650
CURT MANUFACTURING 25328 Specifications
Product Attributes
| BALL DIAMETER | 2.3125 in. |
| Finish | Carbide Black Powder Coat |
| Gross Trailer Weight | 15000 lbs. |
| WARNING CA Proposition 65 | No |
| WC Tongue Weight | 2250 |
| Box Height In Inches - Xa | 5 |
| Box Length In Inches - Xa | 12 |
| Box Width In Inches - Xa | 6 |
| Class Id | 0 |
| Container Cases Qty - XA | 2520 |
| Container Load Type - XA | Pallets |
| Container Pallet Qty - XA | 18 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 2520 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 16362 |
| Container Weight Lbs - XA | 0 |
| Finish - Xa | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (gtw) | 15,000 LB |
| Item Class - Xa | OBS |
| Item Height - Xa | 3.500 |
| Item Length - Xa | 9.000 |
| Item Width - Xa | 6.500 |
| Master Case Height Inches - XA | 3.500 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 9.000 |
| Master Case Qty - XA | 1 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 14.000 |
| Master Case Width Inches - XA | 6.500 |
| Material - Xa | Blank |
| Mount Type Description - Xa | Blank |
| Pallet Case Per - XA | 140 |
| Pallet Case Per Layer - XA | 28 |
| Pallet Cases Per - XA | 140 |
| Pallet Cases Per Layer - XA | 28 |
| Pallet Layer of Cases - XA | 5 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 22.500 |
| Pallet Total Weight Per - XA | 2004.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 13.740 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 3.500 |
| Retail Length - Xa | 9.000 |
| Retail Width - Xa | 6.500 |
| Sales Family Code - Xa | TPACC |
| Sales Family Description - Xa | TRAILER PARTS AND ACCESS |
| Sales Group Description - Xa | COUPLER |
| Shipping Weight - Xa | 13.740 |
| Side Application Type Description - Xa | Blank |
| Tariff 301 - Xa | Yes |
| Title | 2-5/16" Channel-Mount Coupler with Easy-Lock (15,000 lbs, Black) |
| Tongue Weight (tw) | 2,250 LB |
| Truckload Cases Qty - XA | 2940 |
| Truckload Dom Pickup Location - XA | Eau Claire, Wi |
| Truckload Pallets Qty - XA | 21 |
| Truckload Units Qty - XA | 2940 |
| Truckload Volume Cubic Feet - XA | 106.00000 |
| Truckload Weight - XA | 42084 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Harmonized Tariff Code (HTS) | 8716905060 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish; One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314253289 |
CURT MANUFACTURING 25328 Cross References
| Brand | Part Number |
|---|---|
| Lippert | 2020103033 |
