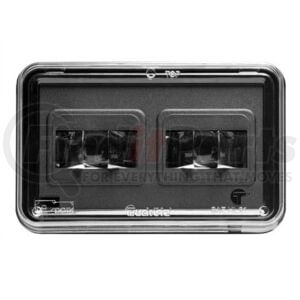

25250Y by TRUCK-LITE
SHIPS TODAY

25250Y by TRUCK-LITE

Part Number
25250Y
Manufacturer
TRUCK-LITE
Description

LIGHT MRKR LED MD

details

$2496

MSRP: $40.88

Save: $15.92

In stock

limited availability at this price!

Free shipping on orders over $100 details
Orders placed before 2pm EST will ship same day

See if you qualify for FinditParts Express is our brand new program that brings over 50,000 of our most popular parts to your doorstep within 2 business days.

or

TRUCK-LITE part description

Features and Benefits

  • 25750Y features hard-wired connections with optional field installable butt-splice connectors
  • Hermetically sealed lens and housing
  • Electronics completely sealed in epoxy to resist corrosion and moisture
  • Less susceptible to shock and vibration
  • Draws less current, allowing more power for other vehicle requirements
  • Direct pin-to-circuit board solders assure vibration resistant contacts
  • Includes 97701 mounting gasket with #25250R/Y and 25750Y
  • 25750Y is legal when mounted 0 to 40 degree rollback from vertical

Technical Specifications

Compliance Family FMVSS 108|CMVSS108|DOT|SAE
Product Type Marker Clearance Light
Packaging Type Standard
KIT (Y/N) No
Series 25 Series
Standards Met P2|PC
VMRS 034-004-253
Warranty Lifetime
Total Height_INH 2.42
Total Height_MMT 61.47
Total Depth_INH 1.16
Total Depth_MMT 29.46
Total Width_INH 4.73
Total Width_MMT 120.14
Plug Side One Hardwired
Number of Wires 2
Lens Height_INH 2.42
Lens Shape Rectangular
Lens Material Polycarbonate
Lens Color Yellow
Reflectorized (Y/N) No
Sealed/Bulb Replaceable Sealed
Voltage_VLT 12
Number of Diodes/Bulbs 3
Lens Width_INH 4.73
Lighting Technology LED
Diamond Shell (Y/N) No
Plug Side Two Stripped End
Common Size 2"x5"
Mount Type 2 Screw
Mount/Trim Color Yellow
Current Major_AMP 0.1
Lamp Connection Hardwired
Wire Gauge 18
Housing Material Polycarbonate
Lighting Technology LED
Voltage 12
Size 2"x5"
Color/Finish Yellow
Lens Material Polycarbonate
Lens Color Yellow
Number Of Diodes/Bulbs 3
Connection/Plug Type Hardwired
