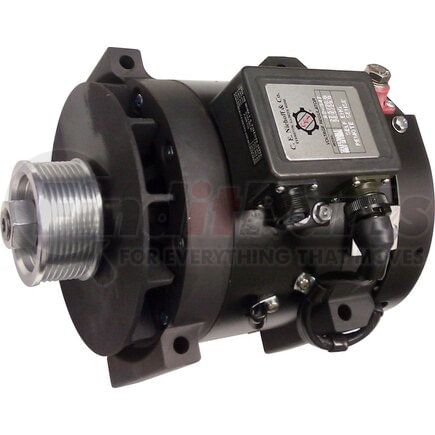

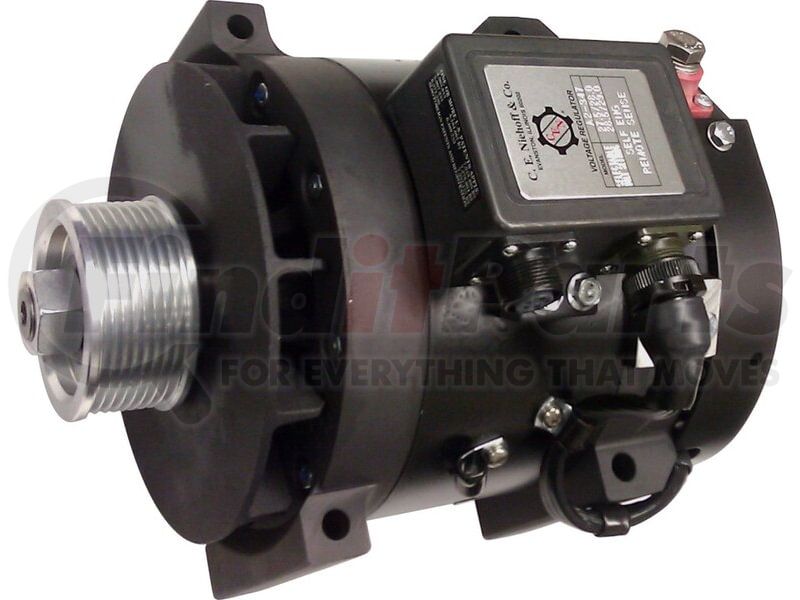

C.E. NIEHOFF C532 - ALT 28V 225A PAD MNT
- Part Number
- C532
- Manufacturer
- C.E. NIEHOFF
- Description
-
ALT 28V 225A PAD MNT
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
C.E. NIEHOFF part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Features
- Six phase alternator design gives added benefit of low output ripple and low EMI signature.
- Rugged design withstands harsh environments and high vibration applications.
- Optional battery voltage/temperature sense regulator allows for battery charge rate optimization in all climates and operating conditions. J1939 compatible.
- Overvoltage cut-out circuit (OVCO) turns the alternator off during high voltage conditions, protecting from voltage transients that threaten sensitive vehicle electronics.
- Bidirectional rotation with optional fresh air ducting.
- Sealed bearings have high temperature grease and are heat stabilized for extended service life in hot engine compartments.
- High efficiency means lower internal operating temperature resulting in longer life. Less engine power needed to produce electric power means more engine power available for other needs.
- Designed and manufactured in the U.S.A.
| Data Sheet: | LIT-C532DS-0116 |
| Installation Instructions: | II231B |
| Product Code: | C532 |
| Voltage: | 28 |
| Output (Amps): | 225 |
| Mounting Configuration: | Pad Mount |
| Regulator Options: | A2-357 / A2-362 |
| Regulator Configuration: | External |
| Rotation: | Bidirectional |
| Max Operational Speed: | 8000 rpm |
