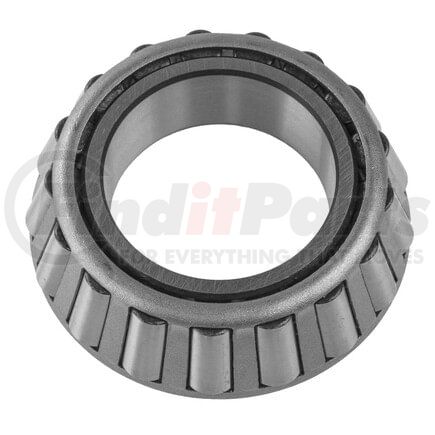

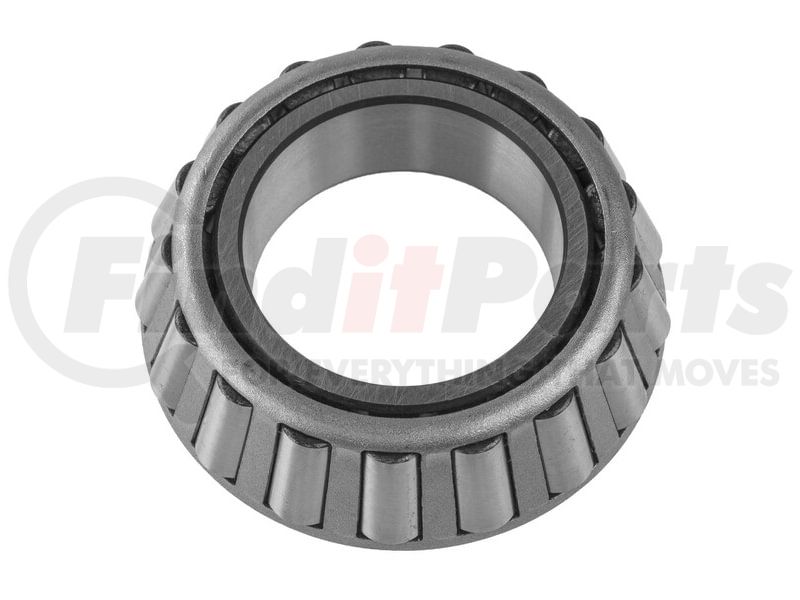

(888) 312-8812 Login SignupTapered Bearing Cone
| Inside Diameter | 1.875 IN |
| Inside Diameter | 47.63 MM |
| Outside Diameter | N/A |
| Cone Radius | 3.50 MM |
| Cone Radius | 0.138 IN |
| Width | N/A |
| California Proposition 65 Required | N |
| Bearing Type | Tapered Roller |
| Cone Outside Diameter | 2.7022 IN |
| Cone Outside Diameter | 68.636 MM |
| Cone Width | 1.000 IN |
| Cone Width | 25.40 MM |
| Bearing Cup Radius | N/A |
| Cup Outside Diameter | N/A |
| Cup Width | N/A |
| Design | Cylindrical |
| Inner Race/Cup Inside Diameter | N/A |
| Inner Ring Width | 1 IN |
| Inner Ring Width | 25.4 MM |
| Material | Steel |
| Outer Race/Cup Inside Diameter | N/A |
| Outer Ring Width | N/A |
| Pre-Greased | No |
| Type | Tapered |
| Harmonized Tariff Code (HTS) | 8482200070 |
| Harmonized Tariff Code (Schedule B) | 8482105048 |
| UPC | 00053893462721 |
| VMRS Code | 053016000 |
| UNSPSC | 31171500 |
| Brand | Part Number |
|---|---|
| TK NP524102 | |
| BCA | NBNP524102 |
| NTN | NBNP524102 |
