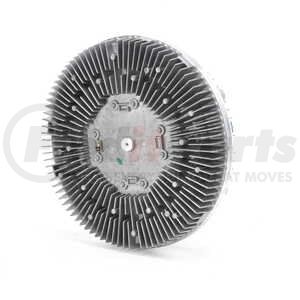

Horton 99A8624-2 - DM Advantage Two-Speed Fan Clutch
$2,87149
MSRP: $3,853.05
Save: $981.56
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
Product Description
DM Advantage Two-Speed Fan Clutch
Application Summary
SEAGRAVE
Features & Benefits
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance
Product Attributes
| BACK PULLEY DIAMETER | 7.54 IN |
| BELT CONFIGURATION | 8K |
| Belt Groove Location | 1.26 IN |
| BOLT CIRCLE | 3.5 IN |
| Center of JB To Top Right Mounting Hole | 1.12 IN |
| Fan Blade Stud Length | 3.07 IN |
| FAN PILOT DIAMETER | 2.56 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 2.24 IN |
| Overall Length | 8.23 IN |
| Stud Thread Size | .375-24 UNF IN |
| VERTICAL MOUNTING DISTANCE | 2.24 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| OEM's Part Number | 98A8624-2 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
Part Interchanges
HORTON 99A8624-2 Cross Reference
We have 1 alternatives for the 99A8624-2 by HORTON:
