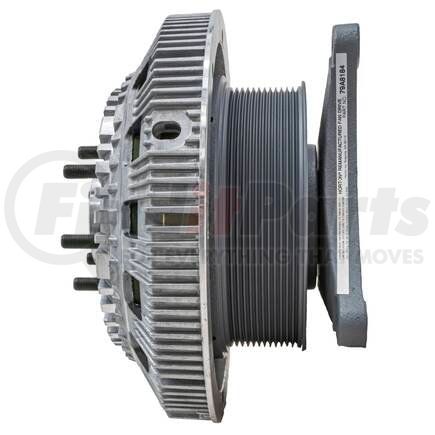

Name: Horton 79A8184 Air Operated Fan Clutch DriveMaster Advantage
SKU: 79a8184
Price: 1414.99 USD
Availability: InStock

Engine Cooling Fan Clutch

MACK, VOLVO

Built to the same specifications as Horton Genuine models
Easy-to-install, exact drop-in replacements
Total cost can be less than rebuilding
Two-year warranty for line-haul applications
Credit for old Horton or competitor cores
Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
Higher, spring-actuated fan speeds make sure necessary cooling is delivered
Faster engine warm-ups in cold weather
Premium bearings and friction liners
High torque for turning large fans
Lower parts count for easy installation and maintenance

Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman

BACK PULLEY DIAMETER	6.69 IN
BELT CONFIGURATION	12PK
Belt Groove Location	1.48 IN
BOLT CIRCLE	3.5 IN
Center of JB To Top Right Mounting Hole	4.39 IN
Fan Blade Stud Length	1.07 IN
FAN PILOT DIAMETER	2.56 IN
Heavy Duty	TRUE
HORIZONTAL MOUNTING DISTANCE	6.73 IN
Overall Length	6.13 IN
Stud Thread Size	.375-24 UNF IN
VERTICAL MOUNTING DISTANCE	7.21 IN

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8483604040
Harmonized Tariff Code (HTS)	8483604040
NAFTA Preference Criterion Code	B
OEM's Part Number	98A8184
Warranty Distance	300000
Warranty Distance UOM	DH
Warranty Special	7500 Hours
Warranty Special UOM	TX
Warranty Time	36
Warranty Time UOM	MO
VMRS Code	042003131
