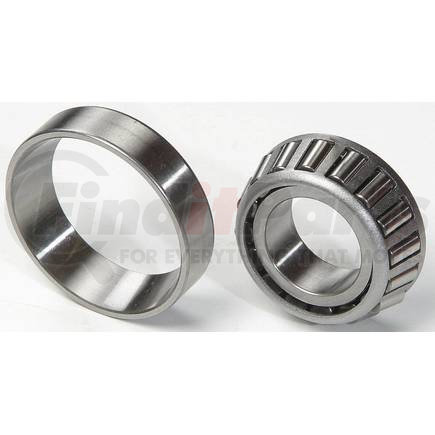

(888) 312-8812 Login SignupTIMKEN 30204 Tapered Roller Bearing Cone And Cup Assembly
Tap to view 4 more
MSRP: $36.57
$3149
Save $5.08
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 23
TIMKEN 30204 Part Description
Manufacturer
Product Description
Tapered Brg Assy
Features & Benefits
- Timken Is The Recognized Global Leader In Tapered Roller Bearings.
- Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
- With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
- Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life
TIMKEN 30204 Specifications
Product Attributes
| Cone Width | 14.00 MM |
| Cone Width | 0.551 IN |
| Inside Diameter | 20.00 MM |
| Inside Diameter | 0.787 IN |
| Outside Diameter | 1.850 IN |
| Outside Diameter | 47.00 MM |
| Cone Radius | 0.040 IN |
| Cone Radius | 1.02 MM |
| Width | 15.25 MM |
| Width | 0.6004 IN |
| California Proposition 65 Required | N |
| Bearing Type | Rolling |
| Brake Pilot Diameter | N/A |
| Flange Diameter | N/A |
| Pre-Greased | No |
| ABS Sensor Ring Included | No |
| Ball Joint Housing Material | N/A |
| Bearing Included | Bearing Assembly |
| Cone Outside Diameter | 1.314 IN |
| Cone Outside Diameter | 33.375 MM |
| Design | Cylindrical |
| Housing Material | N/A |
| Hub Pilot Diameter | N/A |
| Inner Race/Cup Inside Diameter | 37.304 MM |
| Inner Race/Cup Inside Diameter | 1.46866 IN |
| Inner Ring Width | 14 MM |
| Inner Ring Width | 0.5512 IN |
| Material | Steel |
| Number Of Lugs | N/A |
| Outer Race/Cup Inside Diameter | 42.824 MM |
| Outer Race/Cup Inside Diameter | 1.68598 IN |
| Outer Ring Width | 0.4724 IN |
| Outer Ring Width | 12 MM |
| Type | Tapered Roller |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8482105048 |
| Harmonized Tariff Code (HTS) | 8482200040 |
| UPC | 00053893430706 |
| VMRS Code | 053016000 |
| UNSPSC | 31171500 |
TIMKEN 30204 Cross References
TIMKEN 30204 Fits Vehicles
- Ford Courier (1972-1982)
- Mazda B1600 (1972-1976)
- Mazda B1800 (1977-1978)
- Mazda B2000 (1979-1984)
- Mazda B2200 (1982-1984)
- Mazda Rotary Pickup (1974-1977)
- Nissan 2000 (1967-1970)
- Nissan 200SX (1977-1979)
- Nissan 510 (1978-1981)
- Peugeot 304 (1971-1972)
- Renault 4CV (1961-1962)
- Renault Dauphine (1957-1966)
- Renault Fuego (1982-1985)
- Renault R10 (1968-1971)
- Renault R12 (1971-1974, 1976)
- Renault R15 (1972-1974, 1976)
- Renault R16 (1969-1972)
- Renault R18i (1981-1986)
- Renault R5 (1976)
- Simca Aronde (1956-1961)
- Subaru DL (1974-1989)
- Subaru FE (1979)
- Subaru GF (1975-1979)
- Subaru GL (1985-1989)
- Subaru GL-10 (1985-1989)
- Subaru GLF (1980-1982)
- Subaru Justy (1987-1994)
- Subaru Loyale (1990-1993)
- Subaru Standard (1976, 1978-1984, 1986-1987)
- Subaru XT (1985-1987)
