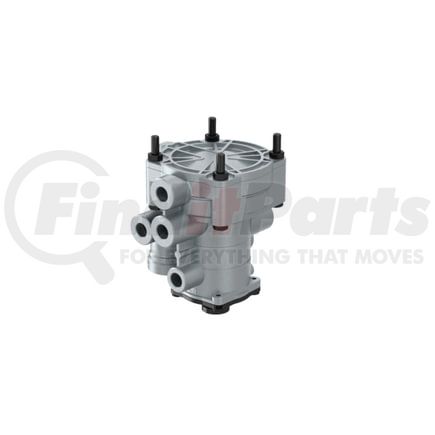

WABCO 9730090010 - Trailer Brake Control Valve
$1,87999
MSRP: $2,395.28
Save: $515.29
Limited Availability
. Learn more
WABCO part description
Trailer Control Valve
Product Attributes
| Size | 193 x 144 x 139 |
| Mounting | 4x M8 |
| Predominance | 0.20 bar |
| Multi Nominal Diameter (From Port 1 To X) | 9 mm |
| Calculated Volume (dm³) | 3.8631 |
| Weight | 4.6253 |
| Port thread 22 | M22 x 1.5 JED - 388 |
| Port Thread 41 | M22 x 1.5 JED-388 |
| Port Thread 42 | M22 x 1.5 JED-388 |
| Temperature Range | -40°C to +80°C |
| Max. operating pressure | 8.5 bar |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Exhaust | Snap on contour |
| Port Thread 43 | M16 x 1.5 JED-388 |
| Distance between bolts | 85x85 mm |
WABCO 9730090010 Cross Reference
We have 12 alternatives for the 9730090010 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
