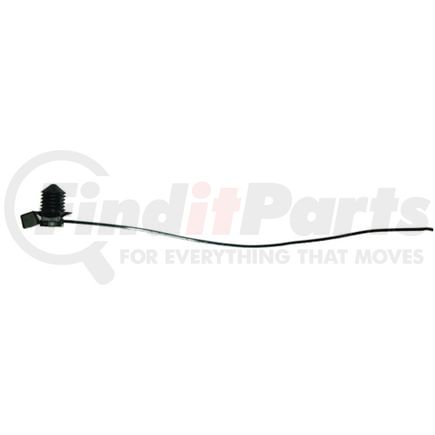

(888) 312-8812 Login SignupDELPHI ES20114 Oxygen Sensor
$9049
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jul 28
DELPHI ES20114 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES20114 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Front, Rear, Rear Left. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 20.3 IN |
| Wiring Harness Length | 515.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 4 |
| Grade Type | Standard Replacement |
| Connector Shape | Square |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 545.0 MM |
| Overall Length | 21.5 IN |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9027102000 |
| UPC | 00689604145449 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES20114 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131482 |
| Airtex | 5S10077, 5S3040, 5S3041, 5S3043, 5S4205, 5S4298, 5S4451, 5S4461, 5S4463, 5S5664, 5S6222, 5S6243, 5S6257, 5S6723, 5S9183 |
| Beck/Arnley | 156-4224 |
| BorgWarner | OS1679, OS1694, OS1698, OS2561, OS2580, OS2684, OS2685, OS1676, OS1678 |
| Bosch | 13256, 13637, 13655, 13684, 13853, 13966, 15079, 15392, 15398, 15411, 15412, 15908, 13184, 13377, 15293 |
| DENSO | 234-4727, 234-4292, 234-4368, 234-4355 |
| DENSO Auto Parts | 2344365, 2344728, 234-4292, 234-4355, 234-4368, 234-4727 |
| General Motors | 12581689, 12601759 |
| Honda | 26532RACA51, 36531-P8D-J21, 36531-P8E-A11, 36531-P8F-A11, 36531-PGE-A11, 36531-PGK-A03, 36531-PVF-A01, 36532-PZA-L01, 36532-RCA-A51, 36532-RCJ-A01, 36532-RDJ-A01, 36532-RGL-A11, 36532-RJA-004, 36532-RKB-004 |
| IMC | 800 21091 |
| Kem | 138-678 |
| Motorcraft | DY-585 |
| N/A | 25024346, 2344292, 2344355, 2344365, 2344368, 2344727, 2344728, 36531P8DJ21, 36531P8EA11, 36531P8FA11, 36531PGEA11, 36531PGKA03, 36531PVFA01, 36532PZAL01, 36532RCAA51, 36532RCJA01, 36532RDJA01, 36532RGLA11, 36532RJA004, 36532RKB004, 80021091, 138678, 1564224, DY585, 250-241121 |
| NTK | 21051, 24241, 24259, 24413, 24415, 24585 |
| Oextra | REA1160 |
| STANDARD IGNITION | SG1847 |
| Standard Motor Products | SG1724, SG1743, SG1847, SG1848, SG900, SG919, SG922, SG924, SG925, SG940, SG941, SG944, SG1721 |
| WPS World Power Systems | XGN1847 |
| Walker Products | 250-24346 |
| Wells | SU10645, SU11530, SU5302, SU5595, SU5598, SU6187, SU6384, SU6677, SU6714, SU6716, SU7159, SU7733, SU7754, SU7768, SU8223 |
DELPHI ES20114 Fits Vehicles
- Honda Ridgeline (2006-2008)
- Acura RL (2005-2008)
- Saturn Vue (2004-2007)
- Honda Pilot (2003-2008)
- Honda Odyssey (2002-2010)
- Honda Civic (2003)
- Honda Accord (2003-2007)
- Acura TL (2000-2006)
- Acura MDX (2001-2006)
- Acura CL (2001-2003)
