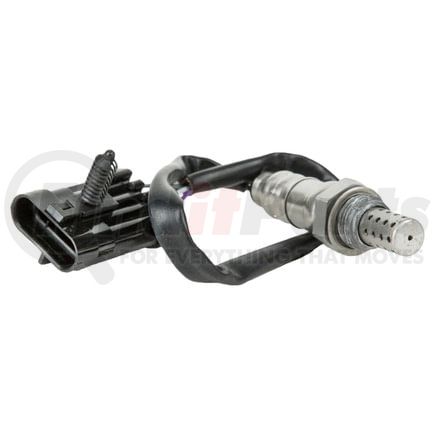

(888) 312-8812 Login SignupDELPHI ES20135 Oxygen Sensor
MSRP: $131.32
$11749
Save $13.83
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI ES20135 Part Description
DELPHI ES20135 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Front, Rear. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 16.3 IN |
| Wiring Harness Length | 413.0 MM |
| Sensor Type | Heated |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Oblong |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18x1.5 |
| Overall Length | 17.4 IN |
| Overall Length | 443.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
Additional Information
| Harmonized Tariff Code (HTS) | 9027102000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604145364 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES20135 Part Interchanges
| Brand | Part Number |
|---|---|
| Oextra | REA1009, REA1829, REA1830, REA1833 |
| Walker Products | 25024490 |
| General Motors | 19209818, 25327985, 25361764, 96394003, 96394004 |
| Bosch | 13852, 15557, 15561, 15703 |
| N/A | 2344063, 8972240110 |
| Wells | SU5244 |
| NTK | 24653 |
| ACDelco | 2131630, AFS105 |
| Isuzu | 97224011, 8-97224-011-0 |
| Standard Motor Products | SG1417, SG1419, SG1423, SG236, SG454 |
| BorgWarner | OS128, OS2250, OS2252, OS2256 |
| DENSO Auto Parts | 234-4063, 234-4284 |
| Honda | 8-97224-011-0 |
DELPHI ES20135 Fits Vehicles
- Pontiac GTO (2004-2006)
- Chevrolet Aveo (2004-2005)
- Honda Passport (2001)
- Isuzu Trooper (2000-2002)
- Isuzu Rodeo Sport (2001)
- Isuzu Rodeo (2001)
- Isuzu Axiom (2002-2003)
DELPHI ES20135 Cross References
We have 2 alternatives for the ES20135 by DELPHI:
