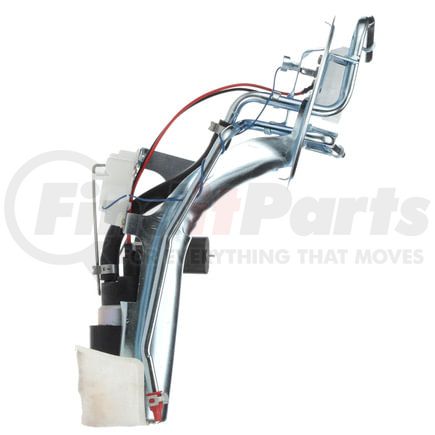

DELPHI HP10049 Fuel Pump Hanger Assembly

★★★★★ (0)

$354.99

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI HP10049 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Hanger Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Delphi pumps are designed to operate under extreme temperatures with quick engine starts
  • Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Restores fast pressure performance and system integrity, translating to better pumping through less energy
  • Lower failure rates due to its innovative design and durability
  • Part is validated, tested and matched to the right vehicle application
  • Lower amperage draws less load on vehicle's electrical system
  • Always be sure to check and clean fuel tank to avoid unnecessary returns

DELPHI HP10049 Specifications

Product Attributes

Item GradeStandard Replacement
System Pressure36 psi
Fuel Level Sender Assembly IncludedNo
Package ContentsFuel Pump Hanger Assembly w/o Float Arm, Seal, (2) Retainer Clips, Instruction Sheet
Outlet Outside Diameter0.375 IN
Voltage12.0 2H
Fuel TypeGas
Maximum Pressure87.0 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity4
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty16.0 82
Resistance Ohms Full160.0 82
Internal Or External StrainerExternal
Pump TypeElectric
Average Current Draw6.0 68
Average Flow Rating22.0 GPH
MaterialMetal
Fuel Sending Unit IncludedNo
Negative GroundNo
Mounting Hardware IncludedNo
Grade TypePremium
Connector ShapeRectangle
Lock Ring IncludedNo
Connector GenderFemale
Inlet Quantity1
Fuel Pump IncludedYes
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure36 PS
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)MX
Harmonized Tariff Code (Schedule B)8413309000
UPC00689604200742
VMRS Code044003257
UNSPSC40151532

DELPHI HP10049 Cross References

BrandPart Number
AUTOBESTF1133A
AirtexE2122H, E2471
AutoZoneDHP10049
Bosch67050
CARTER FUEL PUMPSP74668H
CarterP74668H, P74153
DENSO Auto Parts951-0016, 953-4155
EVO DrivelineAFS0078S, RE0078S, AFS0029P, AFS0109P
FordF2VU 9A407-AA, F2VY 9A407-AA, F2VZ 9A407-AA
GMB525-6260
HellaH75011211
MotorcraftPFB-29, PS-15
N/A9534155, PS15, F2VU9A407AA, F2VY9A407AA, F2VZ9A407AA, USEP2122H, F1133A, C0036H, 4011045, 4017040, 4017303
Precision FuelA30134, E16006
Spectra PremiumSP2122H, SP1113

DELPHI HP10049 Fits Vehicles

  • Ford Crown Victoria (1993-1994)
  • Lincoln Town Car (1993-1994)
  • Mercury Grand Marquis (1993-1994)
