DELPHI FG0278 Part Description
Manufacturer
Product Description

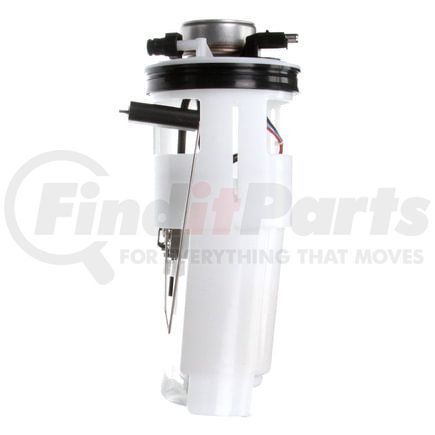

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0278 Specifications
Product Attributes
| Vapor Pressure Sensor | No |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 49 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 51 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 221 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6 68 |
| Average Flow Rating | 31 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 49 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604076248 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0278 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU2052 |
| AUTOBEST | F3134A |
| Airtex | E7123M |
| AutoZone | DFG0278 |
| Bosch | 67660 |
| Carter | P74800M, P74735M |
| Chrysler | 5014789AA, 5014789AF, 52102180, RL014789AF, 5010 017AA, 5014 789AB, 5014 789AC, 5014 789AD, 5014 789AG, 5014 789AH |
| DENSO | 953-3026 |
| DENSO Auto Parts | 953-3026 |
| DORMAN | 2630352 |
| EVO Driveline | RE0568S, AFS0568S |
| GMB | 520-2870 |
| General Motors | 89032322 |
| N/A | 9533026, 5010017AA, 5014789AB, 5014789AC, 5014789AD, USEP7123M, C0441M, 4010186 |
| Precision Fuel | A30113 |
| Spectra Premium | SP7123M |
DELPHI FG0278 Fits Vehicles
- Dodge Ram 3500 Van (1999-2003)
- Dodge Ram 2500 Van (1999-2003)
- Dodge Ram 1500 Van (1999-2003)
- Dodge B3500 (1998)
- Dodge B2500 (1998)
- Dodge B1500 (1998)
