(888) 312-8812 Login SignupDELPHI FE0296 Electric Fuel Pump
MSRP: $331.92
$7799
Save $253.93
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9

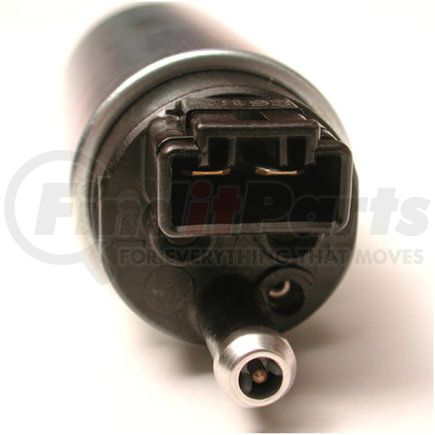

DELPHI FE0296 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0296 Specifications
Product Attributes
| Package Contents | Electric Fuel Pump, Hose Clamp, Hose Piece, Isolator, Seal, (2) Splices, 2-Wire Harness w/Connector, Instruction Sheet |
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Position(s) | In-Tank |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.375 IN |
| Outlet Outside Diameter | 9.5 MM |
| Length | 114.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 8.0 68 |
| Average Flow Rating | 21.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 8.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604076118 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0296 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2025H, EP2038H |
| AUTOBEST | F1482 |
| Airtex | E2157, E2163H, E2222S, E2272S, E2374, E2375, E2382S, E2471 |
| AutoZone | CFE0296 |
| BorgWarner | P442H |
| Bosch | 67243, 67249, 67254, 66086, 69131 |
| Carter | P74172, P74868S, P76101, P76113M, P76113S, P88004 |
| DENSO Auto Parts | 951-0008, 9580-0170 |
| EVO Driveline | AFS0111S, AFS0887P, RE0887P |
| Ford | 1W1U 9H307-BD, 1W1Z 9H307-AB, 1W1Z 9H307-BC, 1W1Z 9H307-BD, 1W1Z 9H307-BG, F7AU 9A407-AB, F7AU 9H307-AB, F7AZ 9350-AA, F7AZ 9350-AB, F8AU 9H307-AC, F8AZ 9H307-AC, XW1U 9H307-AC, XW1U 9H307-AE, XW1Z 9H307-AB |
| GMB | 525-1154 |
| Import Direct | E16009, E16051 |
| Kem | EFP721 |
| Magneti Marelli | 1AMFP00019 |
| Master Parts Division | E2157 |
| Motorcraft | PFS-198, PFS-366, PFS-409 |
| N/A | 9510008, 1W1U9H307BD, 1W1Z9H307AB, 1W1Z9H307BC, 1W1Z9H307BD, F7AU9A407AB, F7AU9H307AB, F7AZ9350AA, F7AZ9350AB, F8AU9H307AC, F8AZ9H307AC, XW1U9H307AC, XW1U9H307AE, XW1Z9H307AB, PFS198, PFS366 |
| Niehoff | P442H |
| Precision Fuel | A43012, E16006 |
| Spectra Premium | SP2272H, SP1113, SP2382H |
| Walbro | GCA721 |
DELPHI FE0296 Fits Vehicles
- Mercury Grand Marquis (1997-2002)
DELPHI FE0296 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FE0296 Questions & Answers
No questions yet
Be the first to ask a question about this product!
